YB-2416J Irregular Shaped Sachet Energy Gel Packaging Machine

YB-2416J Irregular Shaped Sachet Energy Gel Packaging Machine

Automatic  Round Corner Pour Spout Sachet Packing Machine

SEND INQUIRY NOW
SEND INQUIRY NOW
  • Product Details

Automatic  Round Corner Pour Spout Sachet Packing Machine

Model no.  YB-2416J
Details Images

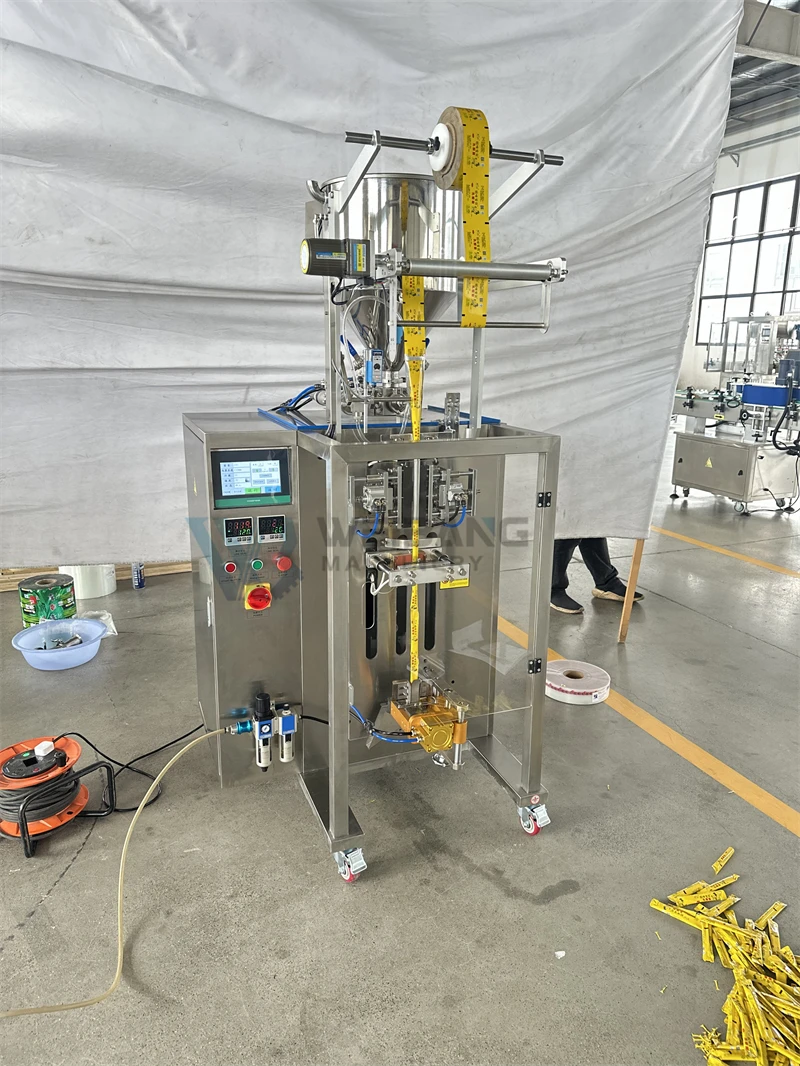

2416J Automatic Vertical Liquid sachet packing machine
Application:
This machine is mainly used for ketchup/tomato sauce, chili sauce, hotpot condiment, salad
cream, cooking oil, honey, yogurt, fruit juice, wine, vinegar, shampoo, hair conditioner, facial
cream  and chemical liquid/paste quantitative packaging.

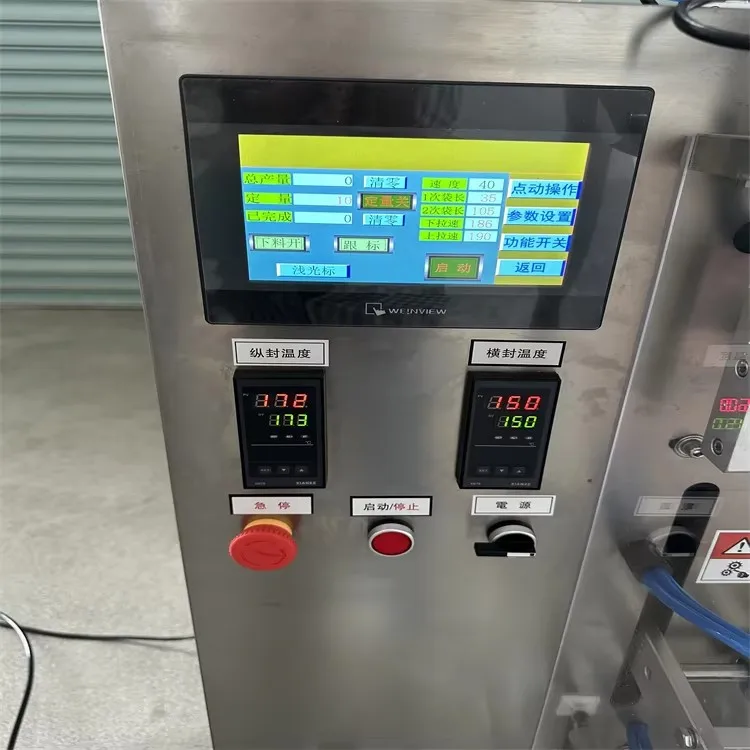

Human/Machine Interface with Touch screen Display

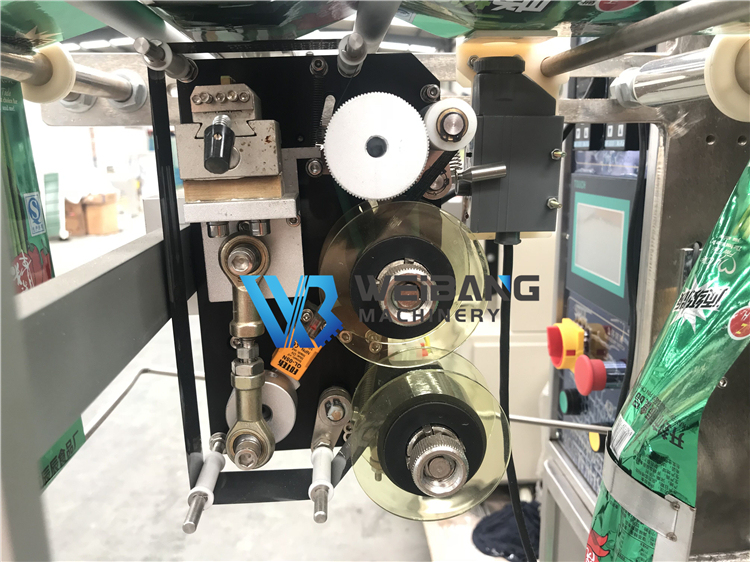

Ribbon stamp code printer

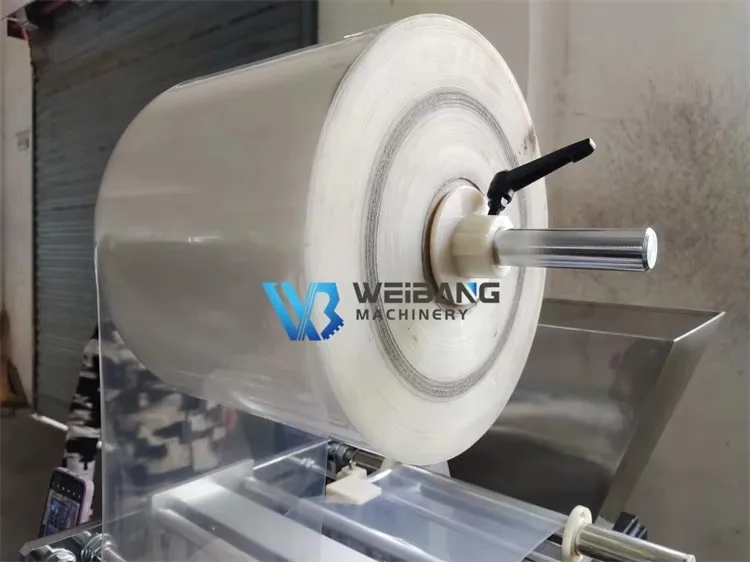

Flim roller

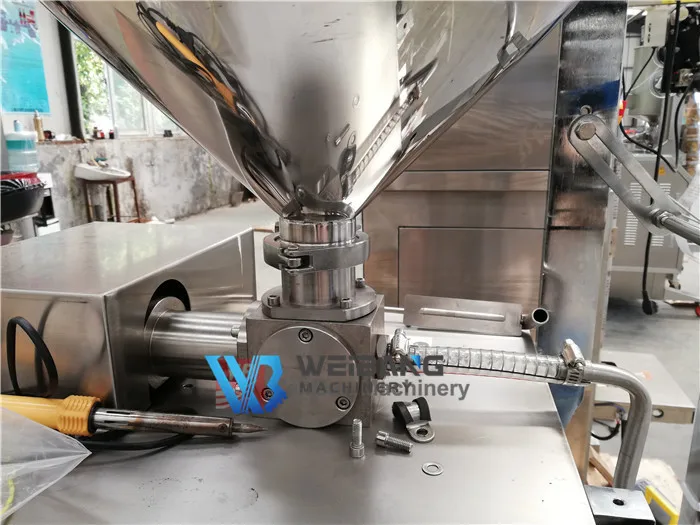

piston pump measuring system

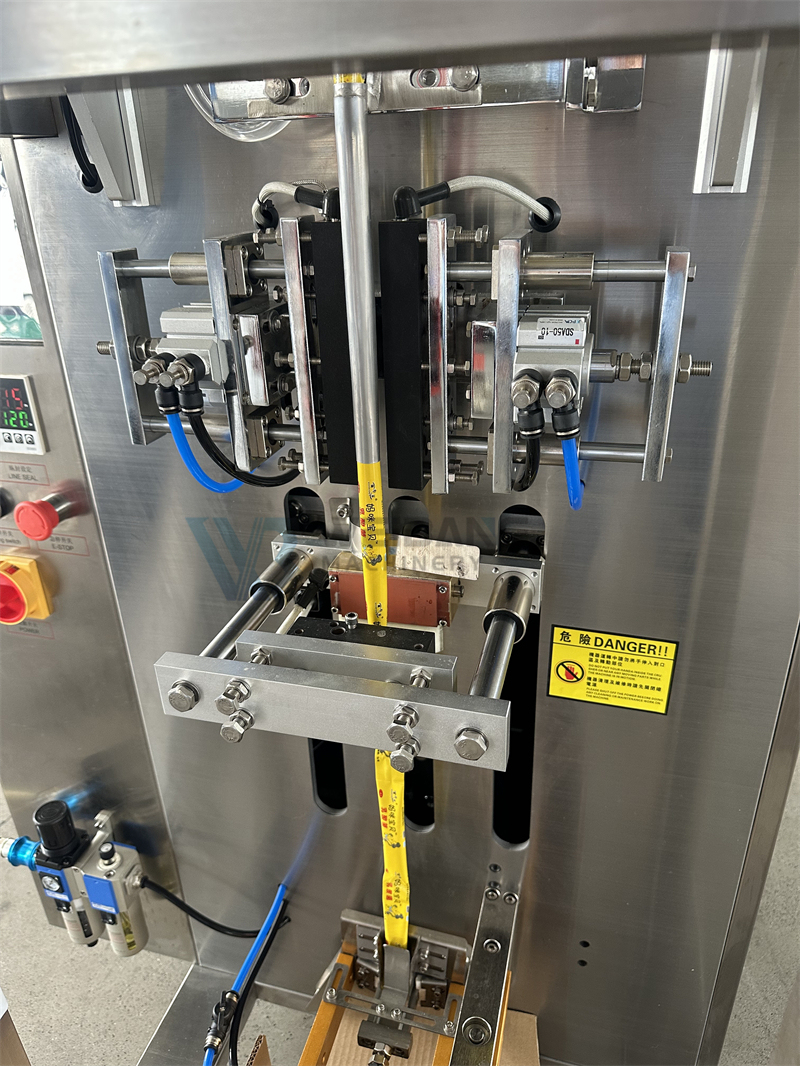

Pillow seal /back seal type
Pls kindly note that One bag former only can make one size bag ,if you have different bag ,need change the bag former mould.

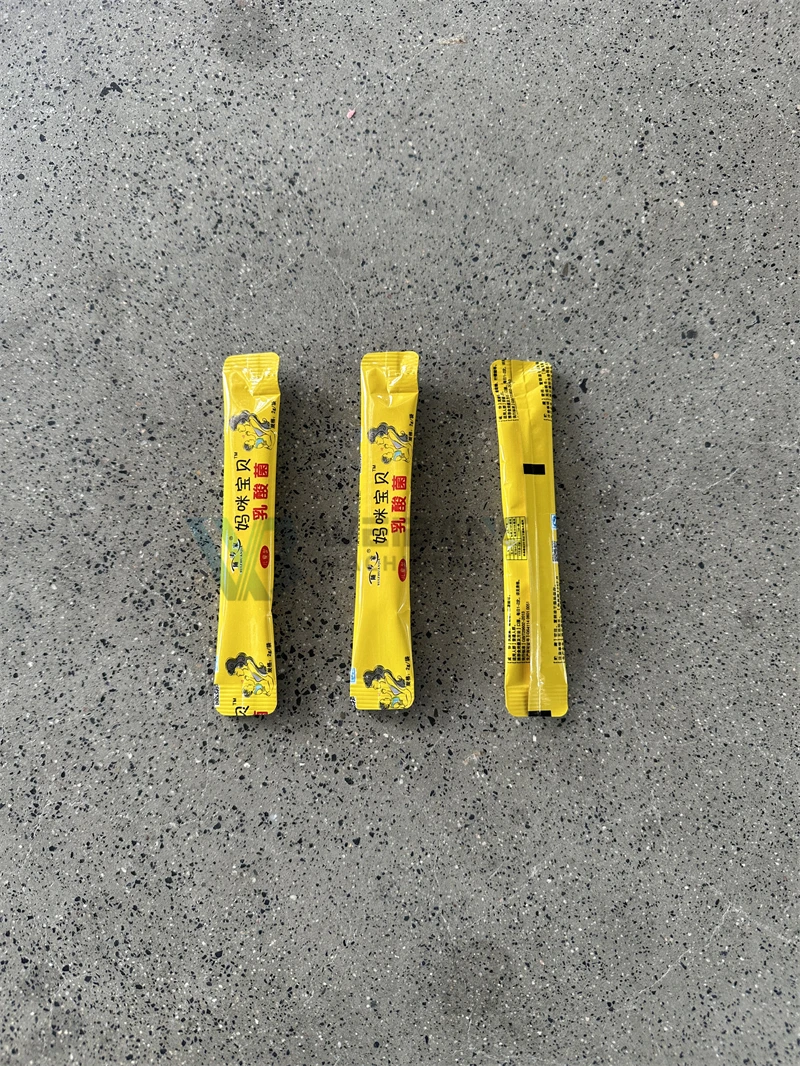

Sample
Suitable packaging materials:
Poly/paper, Paper/PE, PET/PE, PET/AL Plating/PE, BOPP/PE, Tea filter paper and other compound materials can be heat sealed is OK.,recommend film thickness: 40 to 90 microns.
Features
Application:

This vertical granule packing machine is designed for the automatic packing of granule materials in food, Chemicals,such as coffee, pepper granule, bean, drier, vegetable seeds, coffee, milk tea, spices, sugar, salt, herb, tea, seeds, grains, washing powder,legume and so on.


Performance feature:
 1.This machine can finish these work automatically:measuring-making bag-coding(option)-filling-gas
injection(option)-sealing-counting.
2. Computer/PLC control system.photoelectric tracking,which improve the control precision,reliability and intelligence at the maximum limit.
3.Has fault display system,easy to operate and maintain.
4.Make hole punching blade after customer's special request.
5.Full stainless steel or carbon steel machine body for choice.
6. This machine can be installed to code printing machine for 1-3 lines, such as production and expiry date.
PRODUCT SPECIFICATIONS
Model
WB-2416J
Packing speed
30-60bags/min
Packing Range
5-200ml
Film width
240mm
Bag size
L:50-160mm, W:15-115mm
Packing Accuracy
≤ ±1%
Power supply
1ph 220V, 50/60Hz
Power
1.6KW
Net weight
230kg
Overall dimension
L680× W730 × H1300mm
