Automatic 5-50ml Liquid and Lip Gloss Nail Polish Filling Machine YB-Y2 compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.Weibang summarizes the defects of past products, and continuously improves them. The specifications of Automatic 5-50ml Liquid and Lip Gloss Nail Polish Filling Machine YB-Y2 can be customized according to your needs.

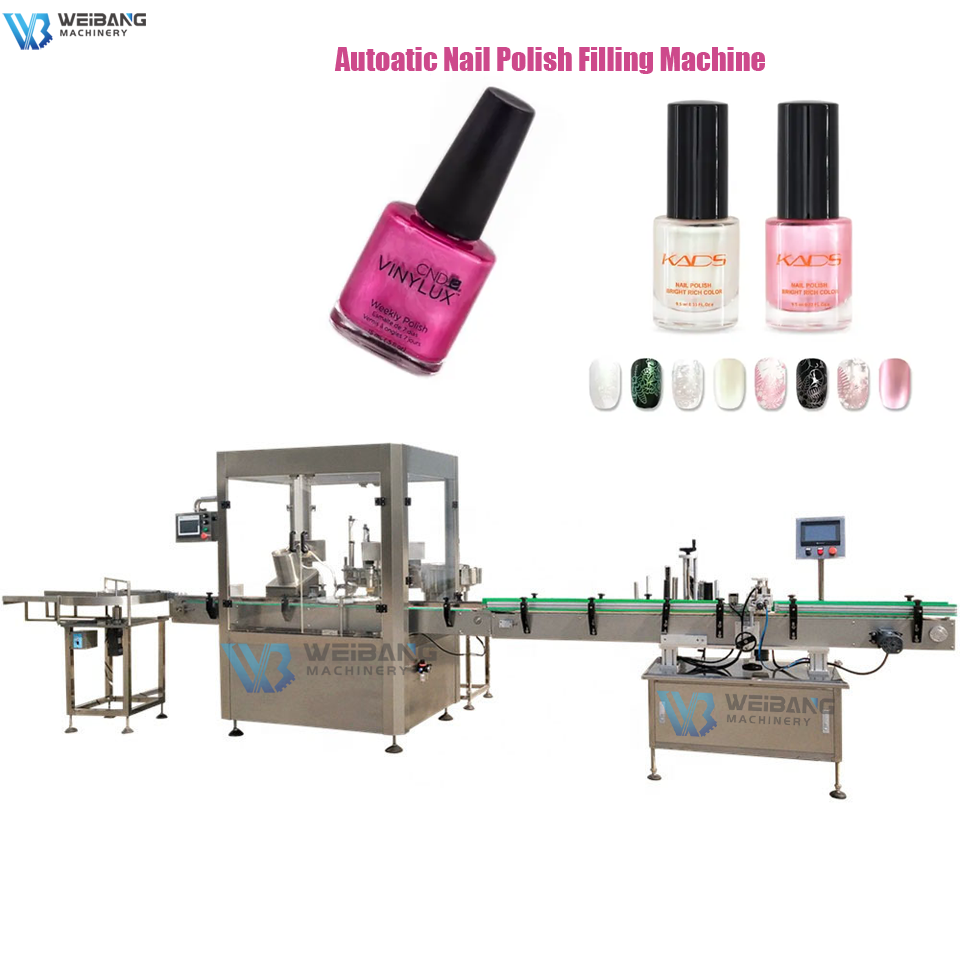

Piston Pump Filler 5-50ml Liquid and Lip Gloss Nail Polish Filling Machine
Application: The machine is mainly used for filling and screw capping for eye drops, IVD in vitro diagnostic reagents, e-cigarette oil, essential oil, perfume, spray liquid, mosquito repellent liquid, nail polish and other products.
Performance feature:
1. Workflow: automatic filling→adding plug/spray pump (optional)→adding cap→capping/crimping.
2. PLC control, color touch screen display.
3. Peristaltic pump/piston pump/rotor pump filling, accurate measurement, easy to control.
4. Servo motor/mechanical arm control capping, with adjustable torque to prevent bottle cap damage.
5. Filling system has suction/anti-drip device.
6. No bottle no filling/no adding plug or spray pump/ no adding cap.
7. This machine is compact, high speed, high degree of automation, save the labor cost.
8. Main electrical components adopt foreign well-known brands.
9. Machine frame is made of high quality 304 stainless steel, easy to clean, meets GMP standard.
Model | YB-Y2 | YB-Y4 | YB-Y8 | YB-Y10 |
Filling nozzle number | 2 | 4 | 8 | 10 |
Adding plug /spray pump work station | 1 | 1/2 | 1/2 | 8/16 |
Adding outer cap work station | 1 | 1/2 | 1/2 | 8 |
Capping head number | 1 | 1/2 | 1/2 | 8 |
Filling volume | 2-150ml | 2-150ml | 2-150ml | |
Speed | 20-35 bottles/min | 30-70 bottles/min | 40-80 bottles/min | 50-120 bottles/min |
Filling error | ≤ ±1% (Depends on product) | |||
Pass rate | ≥ 99% (Depends on quality of packing material) | |||
Working air pressure | 0.6-0.8Mpa | |||
Power | 2.8 KW | 3.5 KW | 5.0 KW | 6.0 KW |
Power supply | 1 Ph. 220V, 50/60Hz | |||
Net weight | ≈650kg | ≈750kg | ≈900kg | ≈1200kg |
Overall dimension | About L2400 × W1800 × H2000mm | About L2400 × W2500 × H2000mm | About L3000 × W1900 × H2000mm | About L4200 × W1900 × H2000mm |
