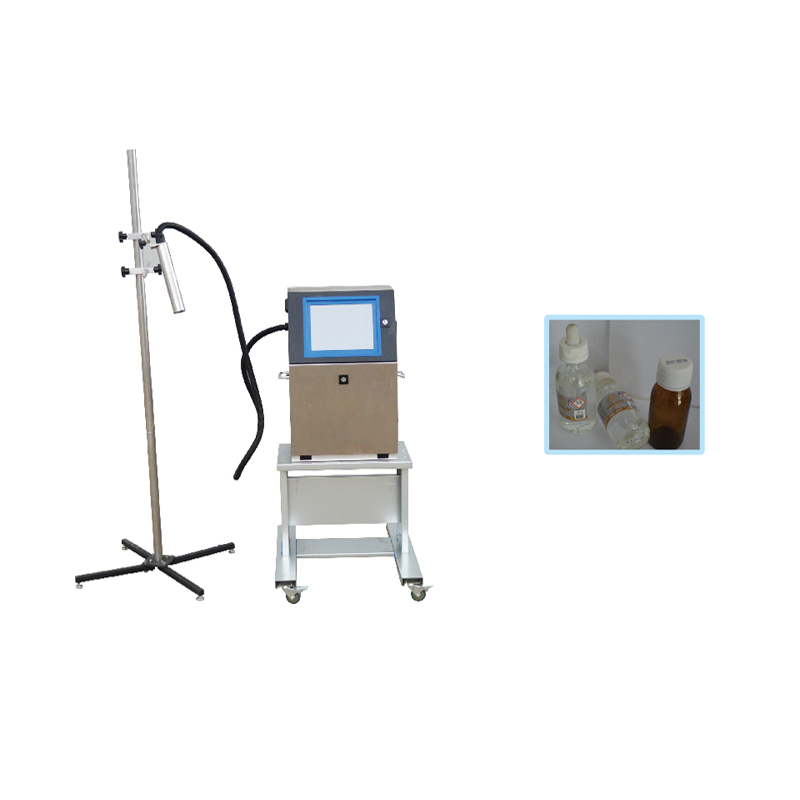

Inkjet Printer for Plastic Bottle Expiry Date Code Printing
Detailed introduction:
This small character inkjet printer is fit for printing on: Plastic bag, bottle, tin can, carton box, pvc pipe, plastic, metal, wood, wire, rubber hose, etc.
widely used for inkjet printing of products in different industries such as medicine, food and beverage, cosmetics, cables, PVC, glass products, etc.
Performance feature:
1. Adopts 10.4-inch high-definition touch screen, easy to operate.
2. Equipped with original imported pump head and has function of automatic cleaning.
3. It can print numbers, letters, Chinese characters, and simple graphics.
4. Machine itself can store 140 pieces of information.
5. The printed information is dried immediately after printing.
6. Machine has one click cleaning and automatic cleaning functions.
7. Optional synchronizer, meter counter, conveyor belt, fiber optic sensor, paging machine, USB to RS232 cable, etc.
Technical parameter:
Model | YB-PM17 |
Print height | 2-17mm |
Print line | 1-4 lines |
Print speed | 2m/s |
Print font | 5x5, 4x7, 7x5, 5x7, 7x9, 6x12, 8x16, 9x16, 10x16, 12x16, 11x24, 24x24 ( Can be customized for special font) |
Ink type | Ketone, alcohol, and water-based |
Ink consumption | 50 million characters (5x5dot)/L |
Drying time | 1s |
Power | 150W |
Power supply | 1Ph. 220V, 50/60Hz |
Net weight | ≈29kg |
Overall dimension | About L380 x W 280 x H 520mm |
Releated Machine :

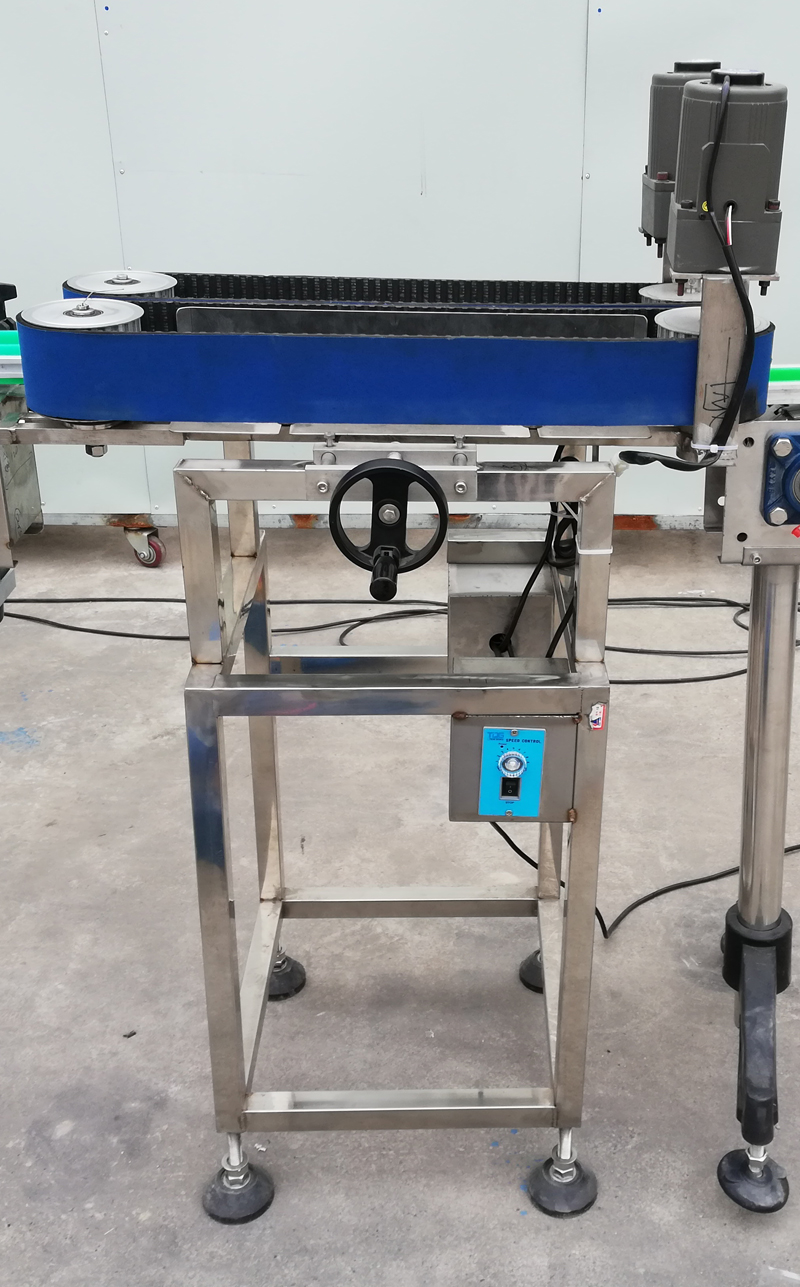

YB-JPZZ ,Bottomless conveyor for clip bottles when need printing codes on the bottle bottom

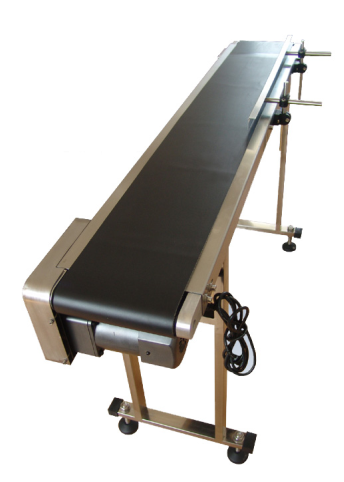

YB-PMSSD ,Belt Convyor
1: Q: Are you a factory or trading company ?
A: We are a professional manufacturer of Vertical packing machine,horizontal packing and bottle filling machines . At the same time , we are also a trustworthy supplier of other packing equipment ,including tea bag packing machine , yogurt cup filling and sealing machine , Labeling machine, shrink sleeve labeling machine , box cartooning machine , metal detector, inkjet printing machine , mixing tank and hard candy packing machine and so on .
2, Q: Trade assurance order is OK?
A: Sure ,we are happy to conclude trade assurance order, which warranty you quality, on time delivery and payment protection.
3, Q: What is the MOQ ?
A: 1 set .
4, Q: How long is the lead time ?
A : All machine takes around 10-25 days after deposit payment .
5, Q: What is your warranty and after-sale service
A: One year warranty and Lifelong after-sale service via skype/whatsapp/mobile/etc .Also Technical service is available.
6,Q:Can I Visit factory and send team for Learning and inspect?
A:Yes, sure, Welcome your visit and no problem for your team come and learning, we will do our best to teaching they how to use the machine .
7, Q: Which is the nearest sea port for you ?
A : Our company located at Shanghai city ,so Shanghai Port is the nearest port for us . But we can delivery the goods to any port as your request .
8, Q: What advantages we have?
A: Rich experience: We have over 15 years experience in exporting packing machine and bottle filling line , all of our sales have been in packing and filling industry over 8 years , some over 15 years . We have our own experienced engineers in R&D , we keep improving the products quality level , design new and economic products to meet our customers’ different requirement . We have our own factory , so that , no matter the packing machine and filling machines which manufactured by ourselves , but also other related machine we get from our partners . All will be re-tested again in our factory .
