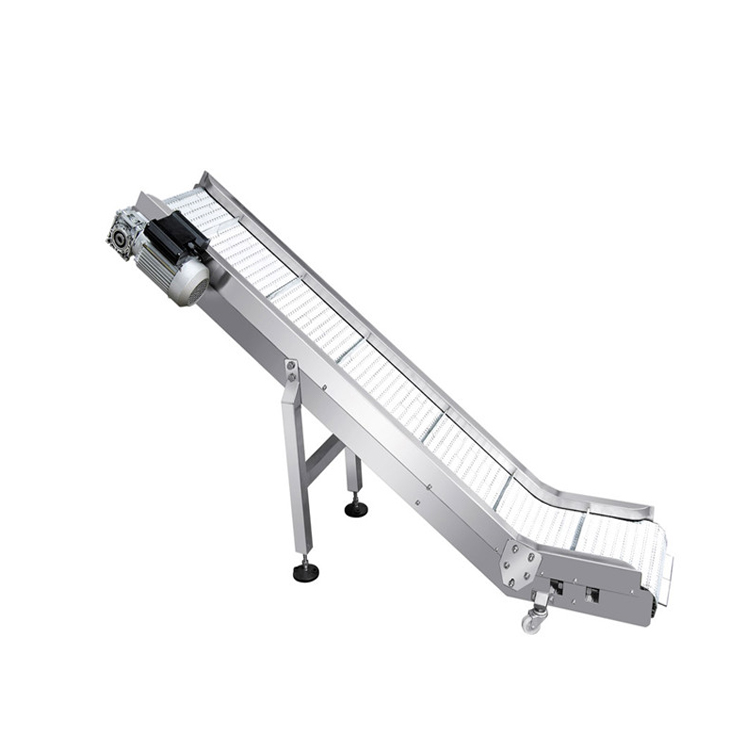

The YB-CS Finished Product Take-Away Conveyor is a critical auxiliary component in an automated packaging line. It bridges the gap between the primary packaging machine (VFFS) and secondary operations such as manual inspection, boxing, or rotary accumulation.
Yb-cs finished product conveyor Discharge take away conveyor belt compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.Weibang summarizes the defects of past products, and continuously improves them. The specifications of Yb-cs finished product conveyor Discharge take away conveyor belt can be customized according to your needs.
Detailed introduction:
Application and characteristics:
This machine is driven by imported micro motor. It has the characteristics of low noise, stable transportation and long service life.
It can transport the finished products to the working platform.
The machine shell is made of all stainless steel.
Technical parameters:
Model | YB-CS200 | YB-CS300 | YB-CS400 |
Conveyor width | 200mm | 300mm | 400mm |
Conveyor type | Belt type | Belt type | Chain plate type |
Conveying speed | 15-60 bags/min | 15-60 bags/min | 15-50 bags/min |
Power supply | 1Ph. 220V, 50/60Hz | 1Ph. 220V, 50/60Hz | 1Ph. 220V, 50/60Hz |
Power | 80 W | 120 W | 150 W |
Net weight | 40kg | 50kg | 70kg |
