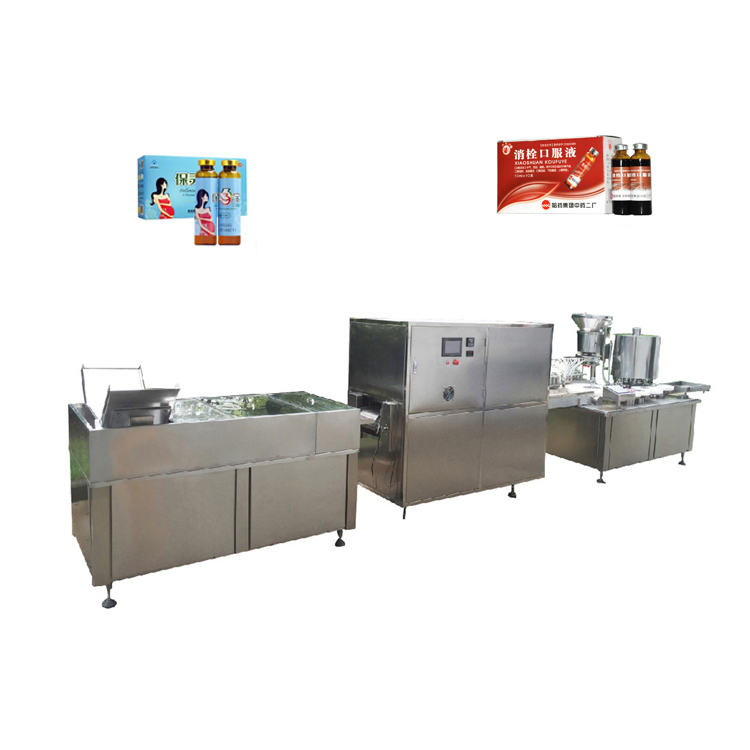

WB-K4/12/16 automatic Oral liquid /test agent filling and capping machine


*Siemens PLC and touch screen;
* Filling machine with high quality safety door;
* New design and strong piston/peristaltic pump system.

* With connect screw between sealing and labeling machine.
* Servo motor control horizontal labeling machine.


Application:
This production line is suitable for filling and capping Oral liquid, nutrient, energy drink, test agent, tube, medicine, liquid etc.


Function and features:

1. Workflow: washing -- drying --preliminary sterilization (infrared quartz tube, oven 2 meters long) -- filling -- sealing.
2. This machine uses PLC control system, color touch screen display.
3. Mainly used for 1-15ml straight tube bottle (with easy pull lid or aluminum cover) filling, adding cover and sealing.
4. Achieve reliable bottle transporting and tracking filling by screw, which is not easy to produce foam. It transports the cover by electromagnetic vibration, high covering rate.
5. Main electrical elements adopt foreign well-known brands.
6.Machine shell is made by 304 (optional 316) stainless steel, machine completely meets GMP requirements.





技术参数:

型号/Model

YB-KX4

YB-KX12

灌装头数/Filing head number

4

12

  扎盖头数/Capping head number

1

10

灌装量/Filling volume

        5-30ml

         5-30ml

生产能力/Capacity

60-80 bottles/min

180-220 bottles/min

灌装精度/Filling accuracy

≤ ±1%

≤ ±1%

合格率/Pass rate

≥ 99%

≥ 99%

电源/Power supply

1 Ph. AC220V, 50/60Hz

3 Ph. 380V, 50/60Hz

总功率/Total power

18 KW

20 KW

净重/Net weight

1200kg

1600kg

外形尺寸/Overall dimension

  L6300 × W1600 × H1500mm

  L6800 × W1600 × H1650mm




Basic Information
  • Year Established
    2005
  • Business Type
    Manufacturing Industry
  • Country / Region
    Shanghai
  • Main Industry
    Packaging Machine
  • Main Products
    Bottle filling machine, liquid filling machine, capping machine, counting machine, labeling machine, powder filling machine, liquid packing machine, sachet packing machine, powder packing machine, shrinking machine ,cartooning machine
  • Enterprise Legal Person
    Helen Deng
  • Total Employees
    16~100 people
  • Annual Output Value
    --
  • Export Market
    Others
  • Cooperated Customers
    --
Company Profile
Weibang has over 20 years manufacture and technology R & D experience for filling machine and packing machine. Weibang has 2500 square meters factory room, and about 50 poeple. Weibang has been shipped machines to over 100 countries, USA, UK, and so on.


Shanghai Weibang Machinery Co.,Ltd. locates in Nanxiang industrial center. It is one of the biggest specialized manufactures engaged in development, production, sales and service in medical and food field.

Our main products include: bottle filling machine, liquid filling machine, capping machine, counting machine, labeling machine, powder filling machine, granular packing machine, liquid packing machine, sachet packing machine, powder packing machine, shrinking machine and other processing equipments including bottle washing etc. The company has passed CE. Now most of products have been sold to Europe, America, Southeast Asia and Africa, etc.

We focus on devoting innovative achievement in optical field and establishing excellent brand. We provide with not only superior products with fashionable design, but also high-quality service. We start from the details, will be your trustworthy cooperator!
Company Video

1: Q:Are you a factory or trading company ?

A: We are a professional manufacturer of Vertical packing machine,horizontal packing and bottle filling machines . At the same time , we are also a trustworthy supplier of other packing equipment ,including tea bag packing machine , wet wipes fold and packing machine , yogurt cup filling and sealing machine , Labeling machine, shrink sleeve labeling machine , box cartooning machine , metal detector, inkjet printing machine , mixing tank and hard candy packing machine and so on .


2, Q: What is the MOQ ?
A: 1 set .

3, Q: How long is the lead time ?
A : All machine takes around 10-25 days after deposit payment .

4, Q: What is your warranty and after-sale service
A: One year warranty and Lifelong after-sale service via skype/whatsapp/mobile/etc .Also Technical service is available.

5,Q:Can I Visit factory and send team for Learning and inspect?
A:Yes, sure, Welcome your visit and no problem for your team come and learning, we will do our best to teaching they how to use the machine .

6, Q: Which is the nearest sea port for you ?
A : Our company located at Shanghai city ,so Shanghai Port is the nearest port for us . But we can delivery the goods to any port as your request .

7, Q: What advantages we have?
A: Rich experience: We have over 20 years experience in exporting packing machine and bottle filling line , all of our sales have been in packing and filling industry over 20 years , some over 20 years . We have our own experienced engineers in R&D , we keep improving the products quality level , design new and economic products to meet our customers' different requirement . We have our own factory , so that , no matter the packing machine and filling machines which manufactured by ourselves , but also other related machine we get from our partners . All will be re-tested again in our factory .


1.Installation and debug:
After customer received machine and placed machine according to layout whichprovide by us, we will arrange technicaian for machine installation, debug and testproduction by two ways:(online teaching,on-site debugging).
2.Training:
We offer technology training to customers.The content of training is structure and maintenance ofmachine, control andoperation of machine. Our technician and salesman will guide and train customeronline, after training, customer's technician could master the operation andmaintenance well.
3.Quality guarantee:
We promise that our machines are all new and never used.Machines are made of suitable materials, adopts new design. Ouality and performanceall meet the requirements of contract.
4.After sale service:
We offer 12 months warranty and wearing parts for each machine, and offer other partsat the lowest price.After customer received machine, if meet any problem during debugor operation of machine, we will help customers online, if the problelms are still can notsolved. or customer need our technician go to their factory, we can arrange it.
