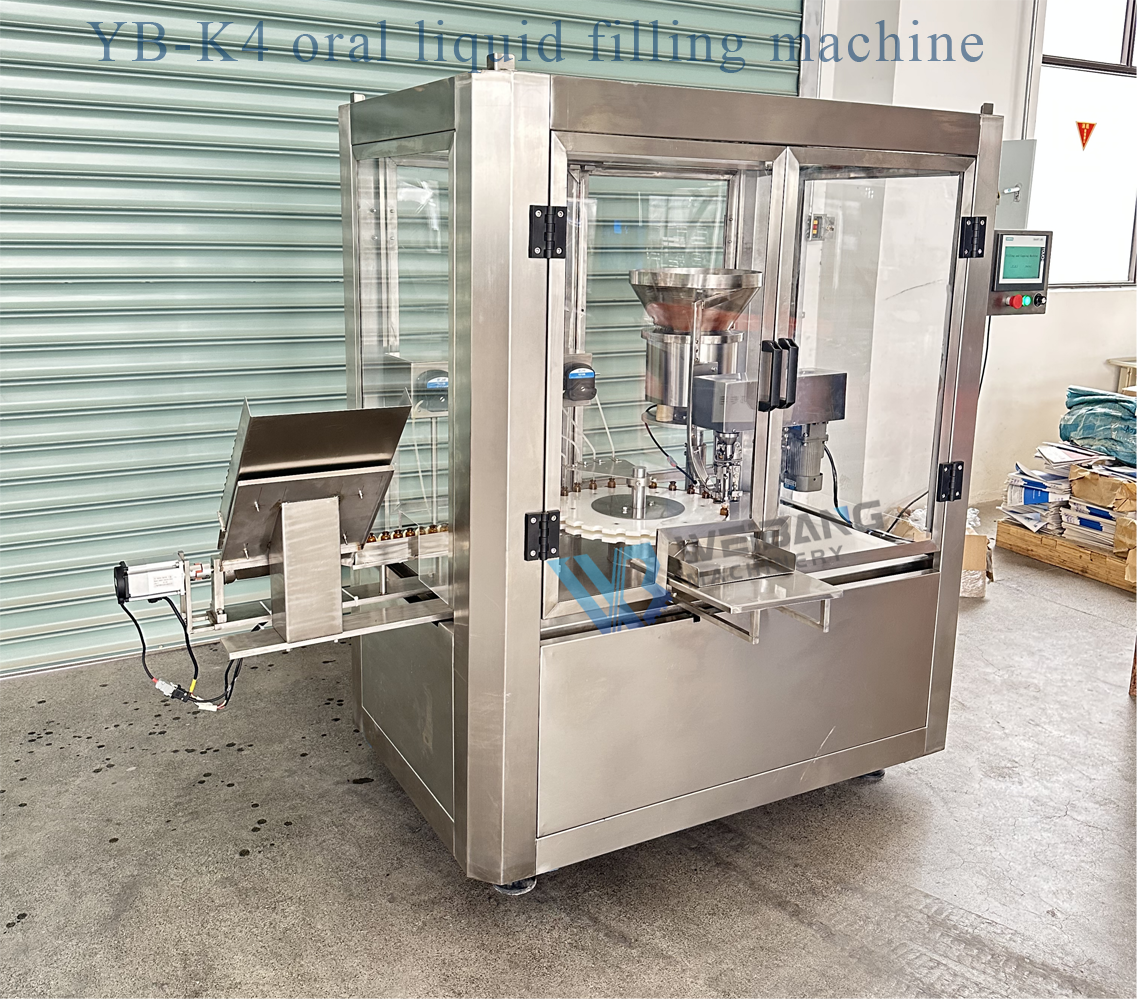

Yb-k4 / yb-k12 automatic Oral Liquid filling capping Machine compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.Weibang summarizes the defects of past products, and continuously improves them. The specifications of Yb-k4 / yb-k12 automatic Oral Liquid filling capping Machine can be customized according to your needs.
Touchscreen display ,Plc control ,Piston pump measuring
This machine is mainly used for filling and capping/crimping oral liquid, IVD in vitro diagnostic reagents, and energy drink, suitable for straight tube bottles.
1. The machine adopts PLC control system and color touch screen display.
2. It is mainly used for filling, capping and sealing of 5-30ml straight tube bottles (with easy pulling cap or aluminum cap).
3, adopt screw into bottle, achieve reliable feeding, tracking filling, not easy to generate foam, electromagnetic vibration cover, high coverage rate.
4. The filling and sealing machine is integrated into one, with advanced design and compact structure.
5. The main electrical components of the machine are of foreign famous brands.
6. The machine shell is made of 304 (316) stainless steel, which fully complies with GMP standard.
型号/Model | YB-K4 |
灌装头数/Filling nozzle number | 4 |
加盖工位数/Adding cap work station | 1 |
旋/扎盖工位数/Capping/Crimping work station | 1 |
灌装量/Filling volume | 5-30ml |
速度/Speed | 40-80 bottles/min |
灌装误差/Filling error | ≤ ±1% (根据物料而定/Depends on product) |
合格率/Pass rate | ≥ 99% (取决于包材质量/Depends on quality of packing material) |
工作气压/Working air pressure | 0.6-0.8Mpa |
功率/Power | 2.0 KW |
电源/Power supply | 1 Ph. 220V, 50/60Hz |
净重/Net weight | 500kg |
外形尺寸/Overall dimension | L1800 × W1600 × H2000mm |
