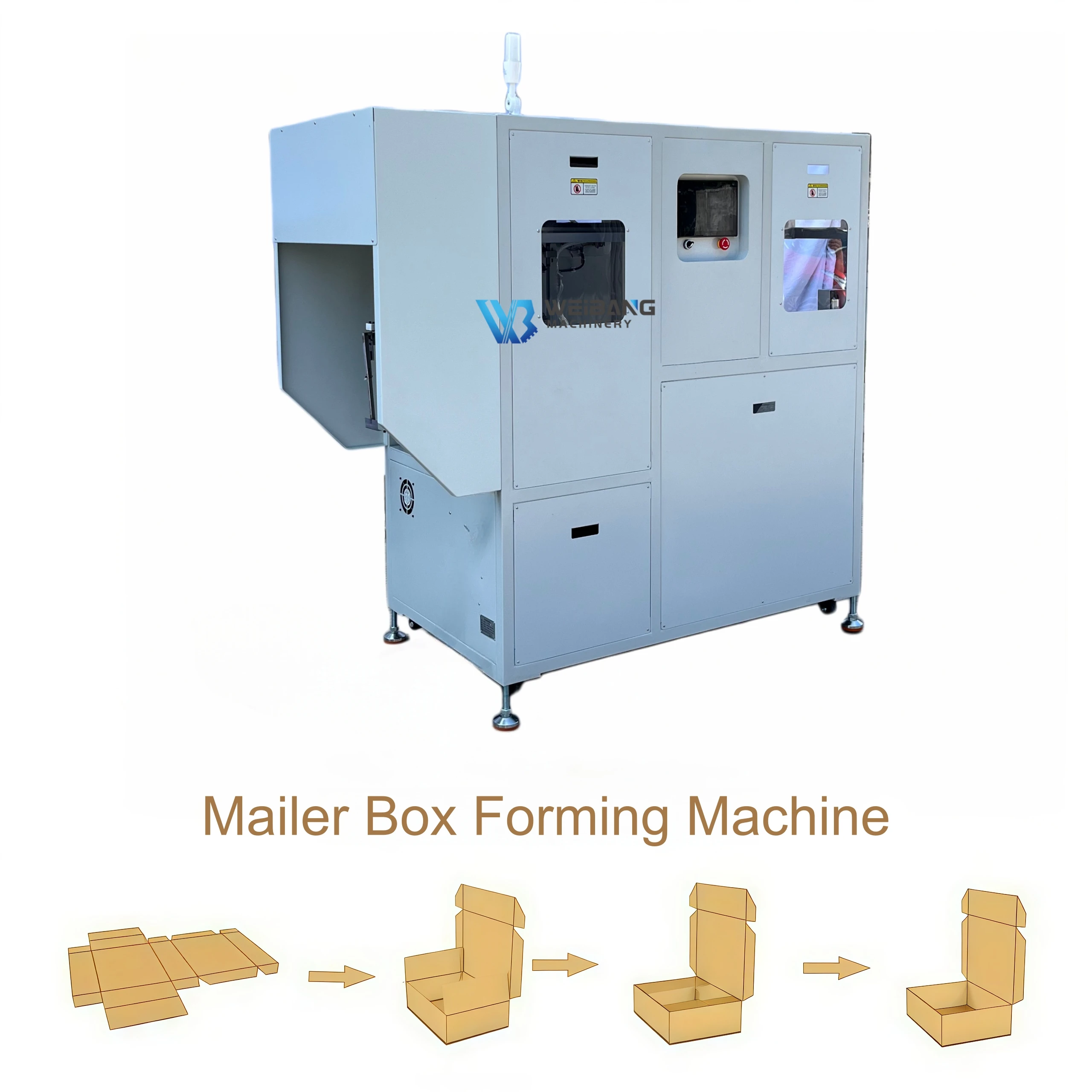

Automatic Mailer Box Forming Machine

Automatic Mailer Box Forming Machine

High-speed automatic mailer box forming machine for e-commerce shipping cartons. Auto folding and forming, flexible size conversion, ideal for e-commerce packaging production lines.

SEND INQUIRY NOW
SEND INQUIRY NOW
  • Product Details

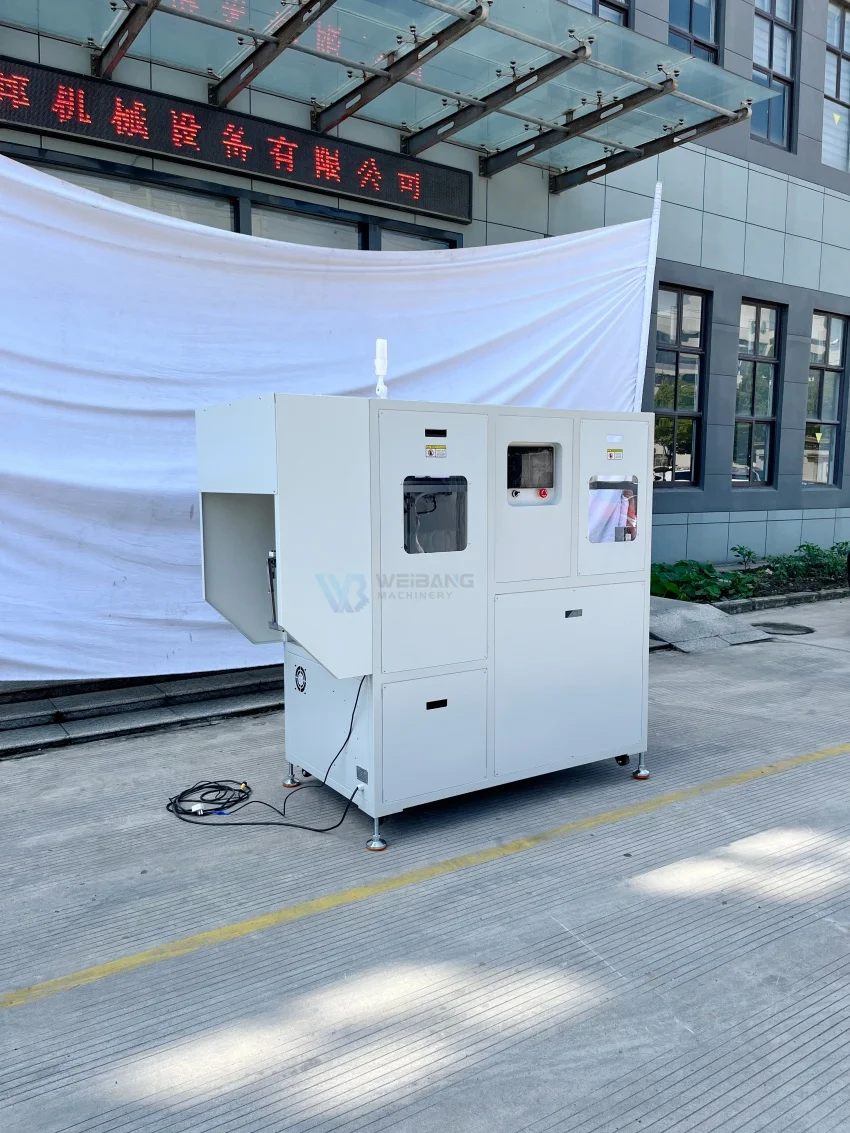

WB-LG350 Automatic Mailer Box Folding/Forming Machine

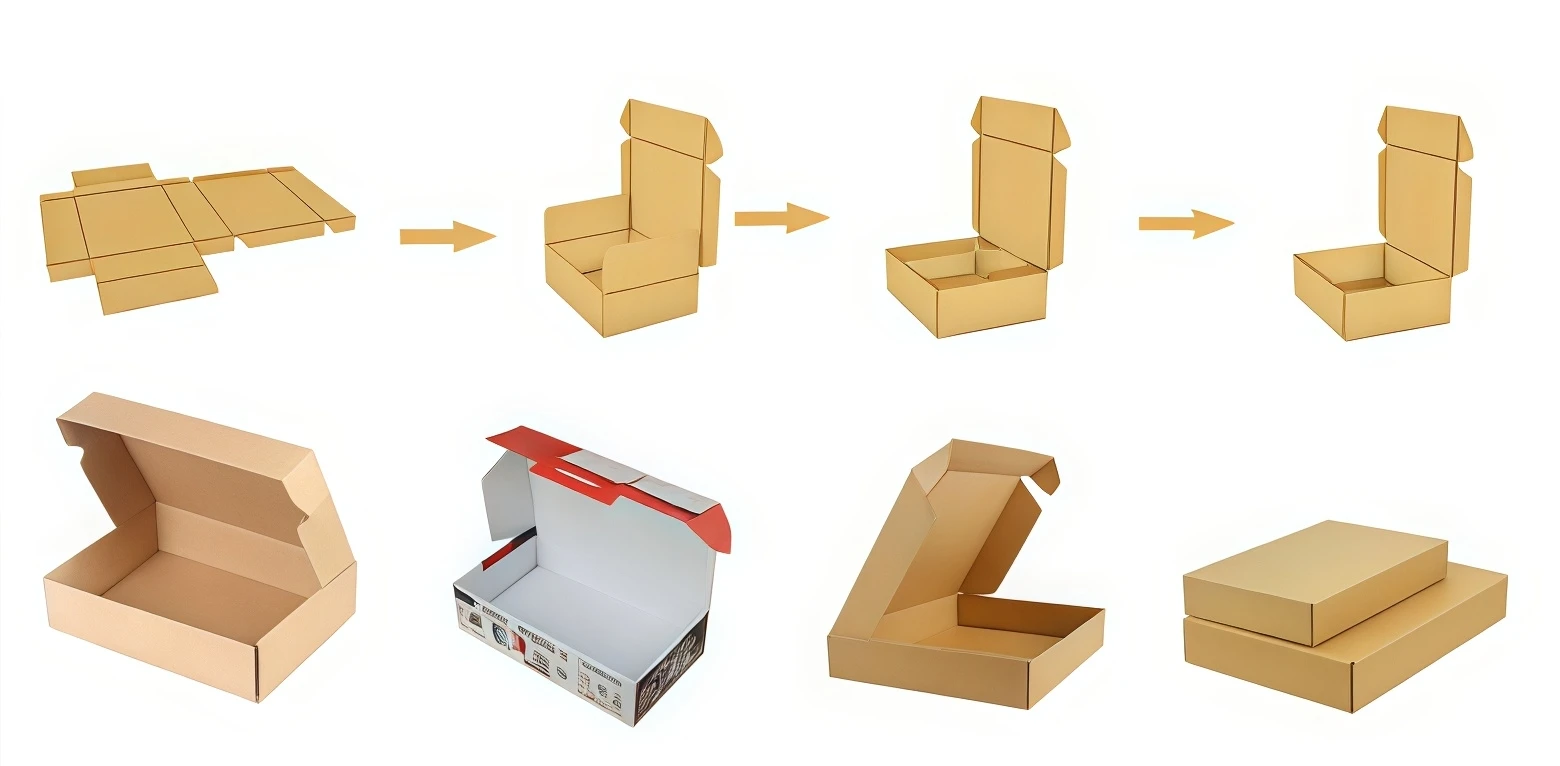

Samples
Features
This machine suitable for use in e-commerce, retail, food & beverage, cosmetics, electronics, and general manufacturing industries.
Perfect for facilities looking to automate their packaging process, improve box forming consistency, and reduce reliance on manual labor.
Machine features:
1.Self-Contained Vacuum: Equipped with a built-in vacuum pump, eliminating the need for external air connections and simplifying installation.
2. Energy Efficient: Advanced electric drive control significantly reduces power consumption.
3. 30-Second Changeover: Switch between different box sizes in just 30 seconds with fully automated mechanism adjustments.
4. Massive Memory Storage: Stores over 1,000 box recipes; one-click recall triggers automatic size synchronization for instant production.
5. Multilingual Interface:  Chinese， English ，etc.
Product Paramenters
Model
WB-LG350
WB-LG450
WB-LG550
Box size
L:100-350mm,W:50-300mm,H:30-120mm
L:150-450mm,W:120-400mm,H:30-150mm
L:100-350mm,W:50-300mm,H:30-120mm
Speed
10-20 pieces/min
10-15 pieces/min
10-15 pieces/min
Gripper type
Standard:120mm tall large motor single gripper. Optional: 90mm tall small motor single gripper.
Standard:120mm tall large motor single hook claw.
Optional :150mm tall large motor
single gripper or a 150mm tall large motor double gripper.
Standard:150mm tall large motor with double gripper. Optional:150mm tall large motor
with single gripper or a 120mm tall large motor with single gripper.
Hopper high
600mm
600mm
600mm
Origami Plane Height Above Ground
750-850mm (can be customized to 950mm)
750-850mm (can be customized to 950mm)
750-850mm (can be customized to 950mm)
Power supply voltage
1Ph,220V,50/60Hz
1Ph,220V,50/60Hz
1Ph,220V,50/60Hz
Rated power (KVA)
0.5KW
0.6KW
0.7KW
Net weight
350kg
500kg
600kg
Machine dimension
L1500 W850 H1707mm
L2300 W1150 H1850mm
L2400 W1350 H1900mm

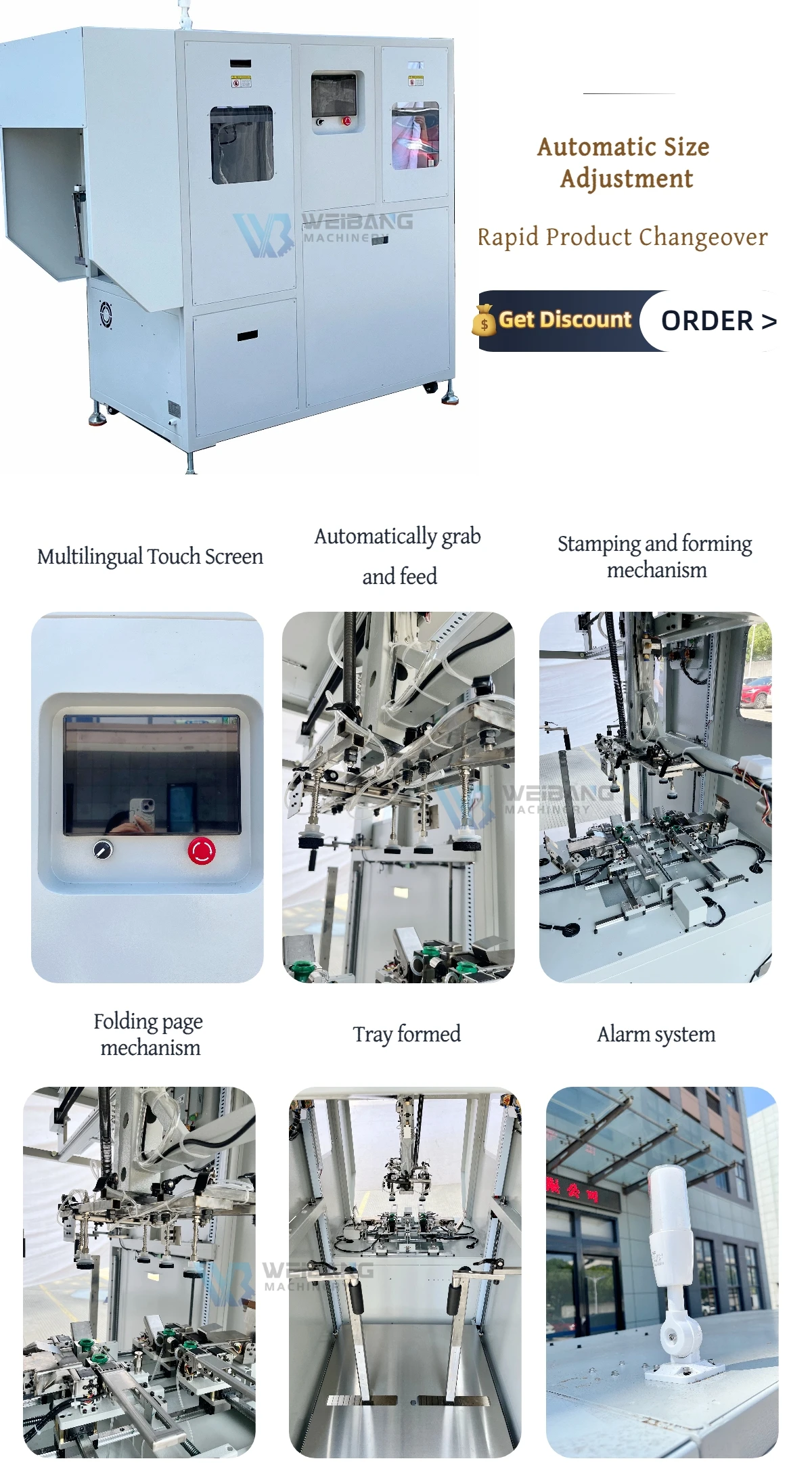

Details Images

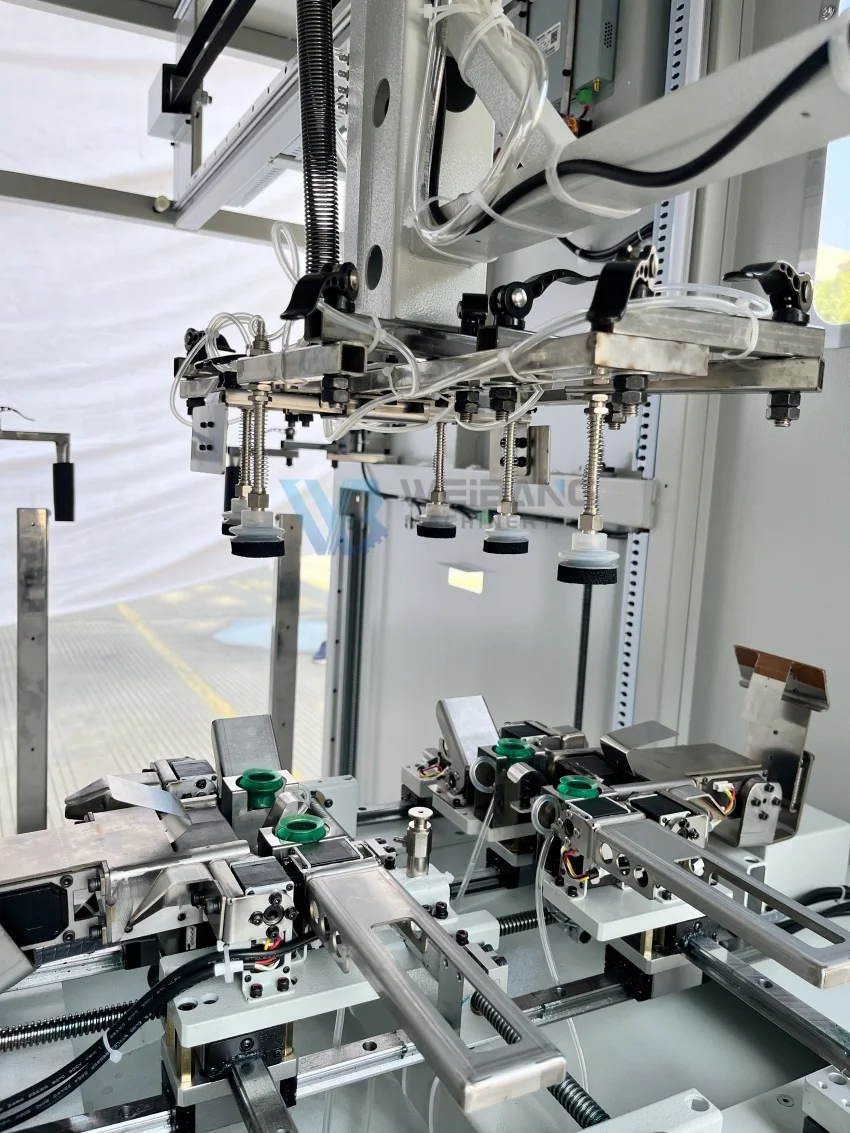

Automatic grab and feed carton box

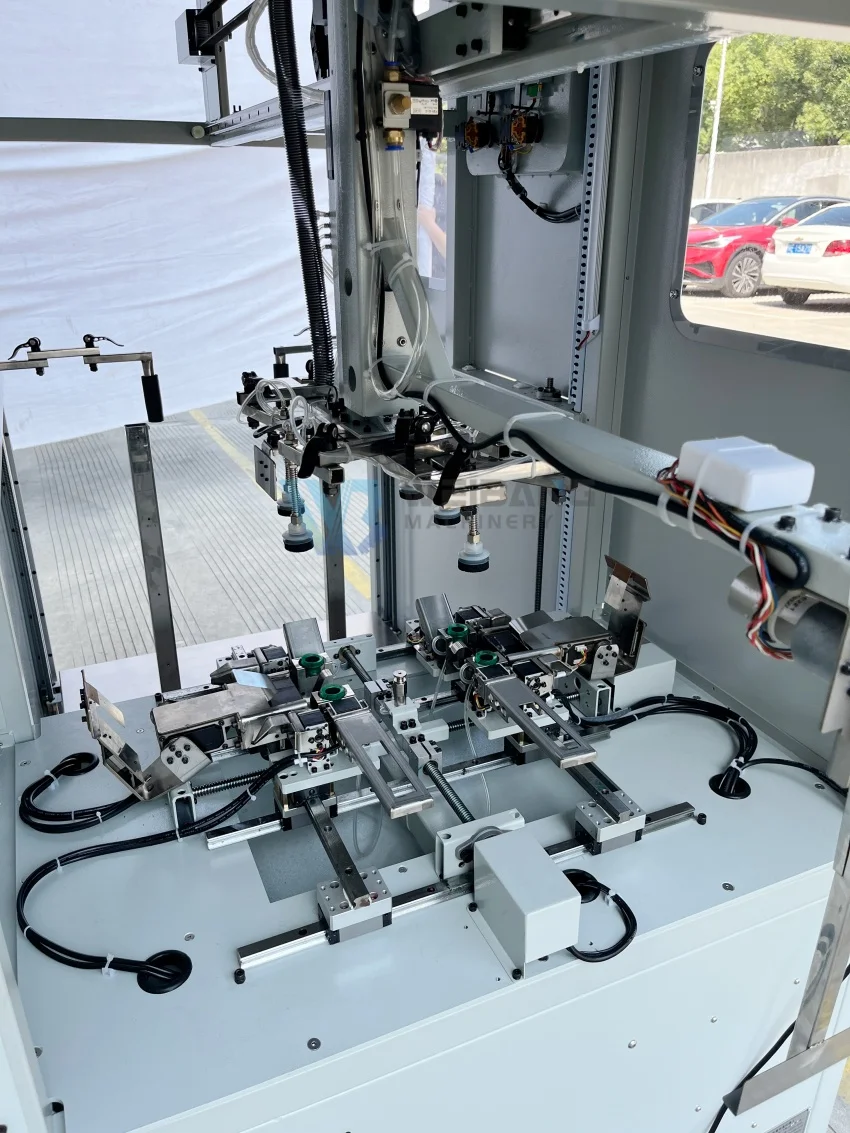

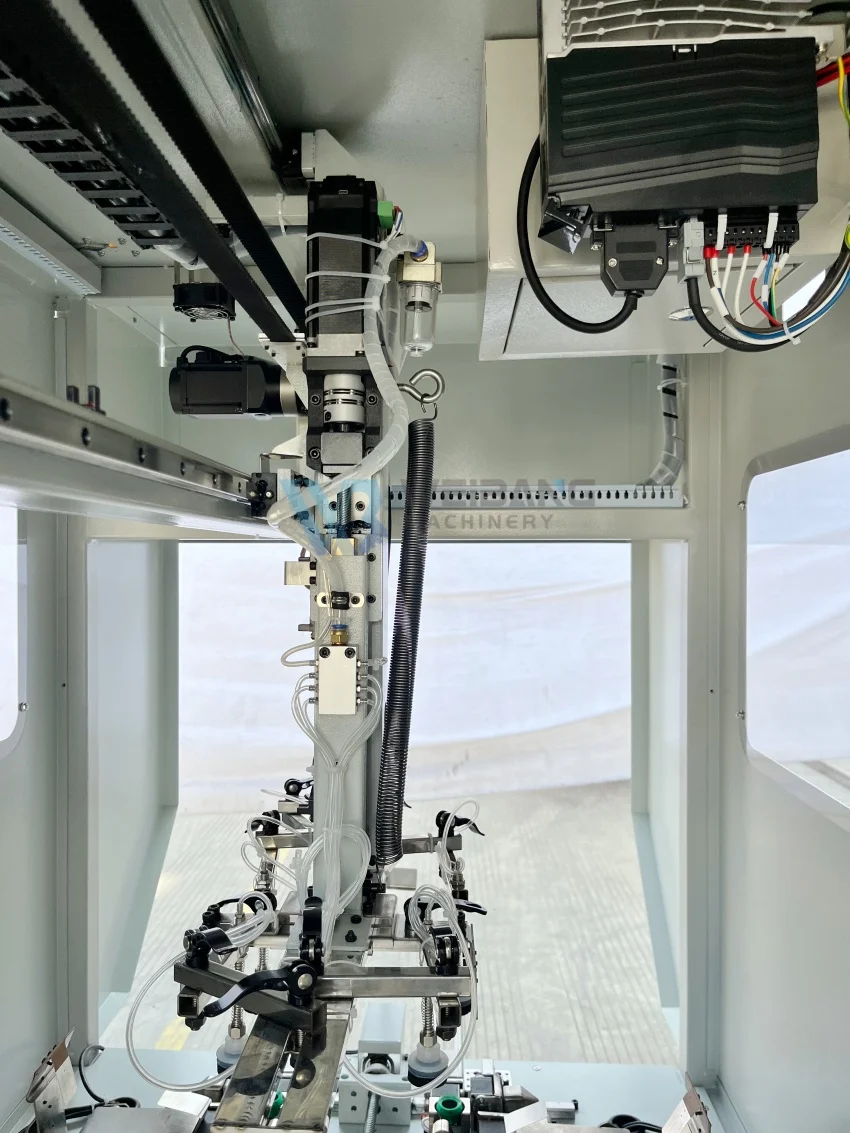

Servo motor control
