Working Radius 1680mm Playload 25kgs Intelligence Automatic Robot Palletizer Robot
Collaborative palletizing robots are intelligent robots that work closely with human staff to enhance production efficiency and flexibly adapt to various tasks. Equipped with safety sensors, they are capable of autonomous learning and environmental perception. Widely applied in production lines across industries such as cartons, pharmaceuticals, and food, they revolutionize the intelligence level of production lines, creating a safer and more efficient working environment for staff.
Payload Capacity: Handles loads up to 25KGS efficiently.
User-Friendly Interface: Easy programming with touchscreen controls.
Customizable Grippers: Adapts to different product shapes (cartons, bags, etc.).
Safety Compliance: Meets industry standards with sensors and emergency stops.
Energy Efficient: Low power consumption for cost-effective operation.
ROBOT PALLETIZER STACKING MACHINE 25KGS – EFFICIENT & AUTOMATED PALLETIZING SOLUTIONS
Collaborative Robot: Internationally recognized high-payload collaborative robot—safe, efficient, and cost-effective.
Operating System: 15-inch high-sensitivity capacitive touchscreen, WEIBANG Collaborative Palletizing Robot System V2.0.
Electrical Control Cabinet: Independently developed, low energy consumption, high configuration, integrated electrical control cabinet.
Frame Components: Portable mobile base for easier application; 7th-axis lifting column.
End Effector: Lightweight and minimalist design, high suction force to prevent dropping, patented product.
Pallet Positioning System: Mechanical pallet positioning system, simple and practical.
Wide Applications: Extensively used in industries such as food, pharmaceuticals, 3C, daily chemicals, and printing.
Safety and Stability: Industrial-grade force control sensors ensure high reliability and safety; supports 10-level collision detection and sensor safety checks; safety functions remain intact in the event of a single fault.
Flexible Deployment: Integrated design, lightweight and compact, small footprint; quick and easy setup for new tasks in workstations, ensuring high efficiency.
Easy Programming: Graphical programming—simple and efficient, no need for advanced programming skills to operate the robot easily. Master the programming method in half an hour, complete simple programming in one hour.
Flexible Production: Rapid switching between multiple functional scenarios, enabling human-robot collaboration, dual-robot collaboration, or multi-robot collaboration to achieve flexible production.
Model | WB-MD25M |
Robot PlayLoad | 25kg |
Working Radius | 1680mm |
Stacking Height | Max. 2450mm (with Pallet) |
Stacking Speed | 10 pcs/min |
Pallet Size | ≤ 1200×1100mm |
Repeat Positioning Accuracy | ±0.05mm |
Communication mode | TCP/IP |
IP LEVEL | IP54 |
Temperature Range | 0-55℃ |
Maximum Power Consumption | 3.5KW |
Power Supply | 1Ph 220V/50Hz |
Whole Machine Weight | 600kgs |
Floor Area | 1505x1716mm |
Equipment Operation Area | 3150x1716mm |
Equipment Require Room Min. Height | 3200mm |
Food & Beverage – Stacking boxes, cans, and packaged goods.
Pharmaceuticals – Precise handling of medicine cartons.
Logistics & Warehousing – Automated pallet building for faster shipments.
Manufacturing – Efficient end-of-line packaging solutions.
Optional configurations: safety fence and light curtain,

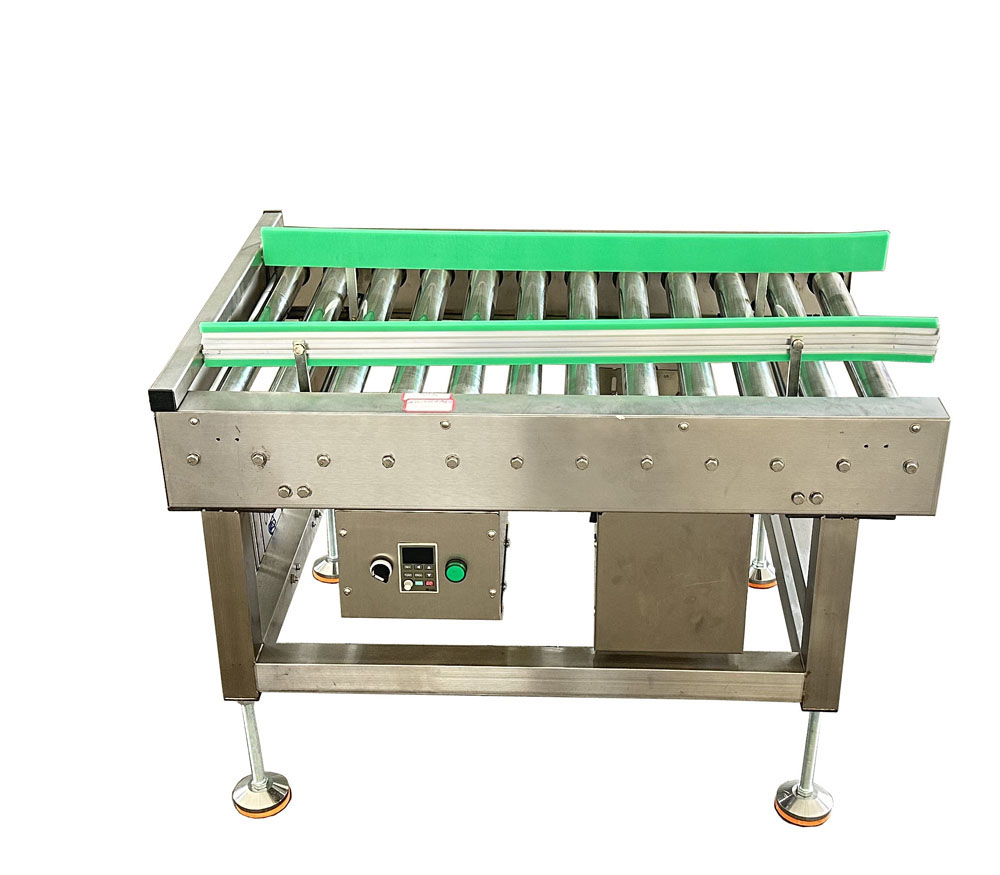

Roller conveyor belt,
