complete turnkey production line for Pet Food Packing Line
The line include:
* 01 - premade bag pouch packing machine
* 02-Automatic Metal Detector after sachet packing
* 03-Belt Conveyor With push sachet device
* 04-90 degree Belt conveyor
* 05-Single sachet weight checker before pack into carton
* 06-Case Erector
* 07-output carton conveyor with turn
* 08-carton stopper device before packing
* 09- Spider Arm Robotic Case packer
* 10-Roller Conveyor after packing
* 11-Straight Conveyor before folding Cartons
* 12-Carton Fold and Tape Sealing Machine

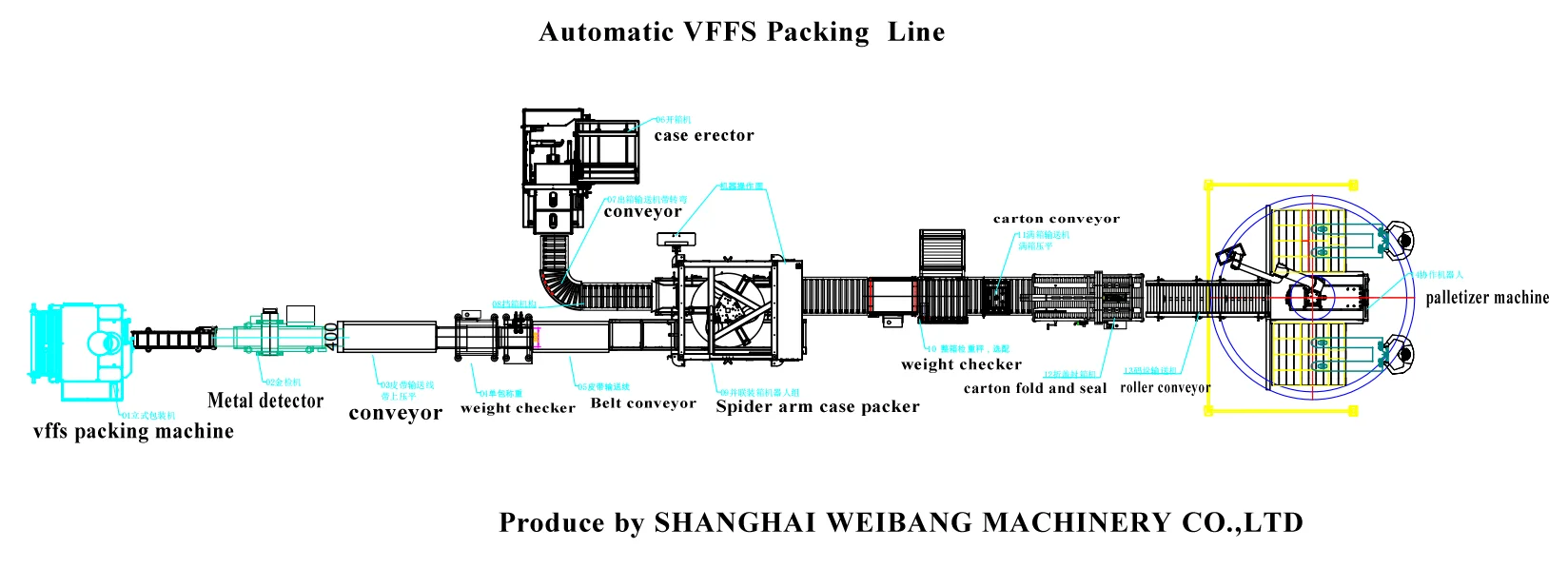

Customerize Packing Line Layout :
Message us Today to get a Customrize Layout for free

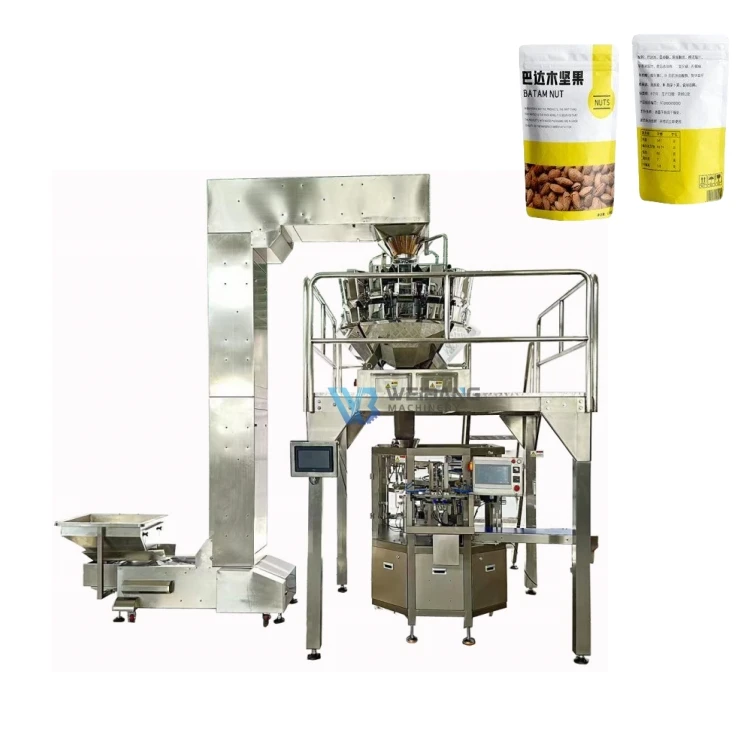

Premade bag pouch packing machine - WB-GD210Z
This machine is suitable for the packaging of various granular materials in the food, such as: dried fruit, nuts, beans, seeds,grains, potato chips, candy, onion rings, frozen food, pet food, etc.
Machine performance:
1. Adopt German Siemens PLC control, touch screen man-machine interface control system; high reliability and intelligence,and equipped with safety protection.
2. In the automatic operation mode of the packaging machine: no feeding when there is a bag missing, unsuccessful bag opening without feeding and sealing, automatic shutdown function under low air pressure.
3. The advantages of the automatic detection function: if the bag is not opened or the bag is incomplete, no material is added, no heat sealing, the bag can be reused, no material is wasted, and the production cost is saved for the user.
4.Safety device: when the working air pressure is abnormal or the heating tube is faulty, it will give an alarm prompt.
5.Bag width adjustment: There is an automatic adjustment device to facilitate product replacement.
6.The contact part between the equipment and the material is made of 304 stainless steel.
7. The machine can be installed with different cutting devices to pack different products: such as linear scale, combined scale, screw device, piston pump device, etc.
Machine advantages:
1. Small size, light weight, and can be manually placed into the elevator without space limitations
2. Low power requirement: 220V voltage, no need for power supply.
3. With 4-6 workstations, low maintenance rate and high stability.
4. Fast speed, easy to match with other equipment, up to 55 bags/minute.
5. Multi-functional operation, one click operation, no need for professional training.
Good compatibility, able to adapt to different types of irregularly shaped packages, making it easy to change the type of
package without needing additional accessories. Lifting correction Set various machine /operation parameters in application.
Work flow : manual bag placement-automatic bag retrieval-automatic date printing-automatic bag opening-electronic metering and

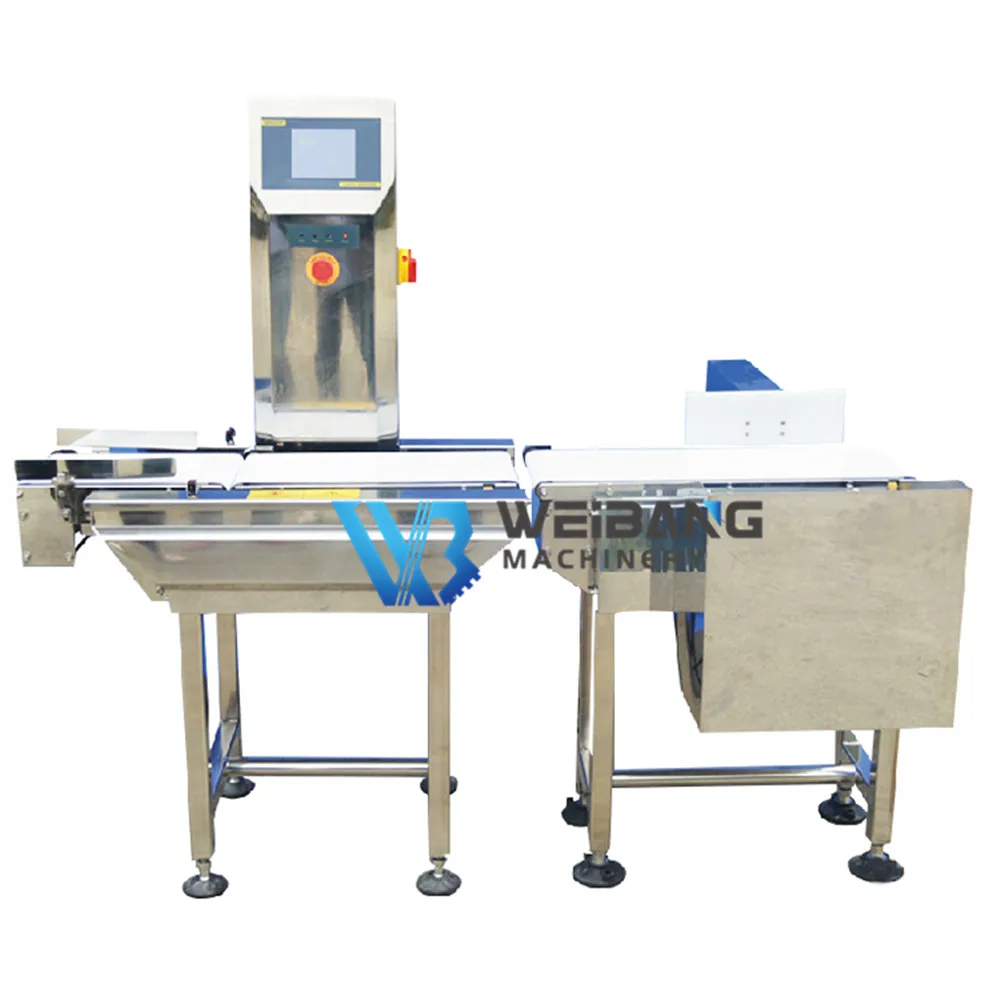

filling→inspection→sealing→sealing and shaping→finished product output. Weight Checker WB-XBC
The machine is used to detect whether the weight of single product is consistent with the set value, and the unqualified products are automatically eliminated by the sorting device.
1. The shell is made of stainless steel, PLC control system and touch screen display.
2. It adopts advanced high-speed digital signal processing technology in the world.
3. Up to 100 messages are preset, which is convenient for editing and storage. 2000 sorting logs can be queried and printed quickly.

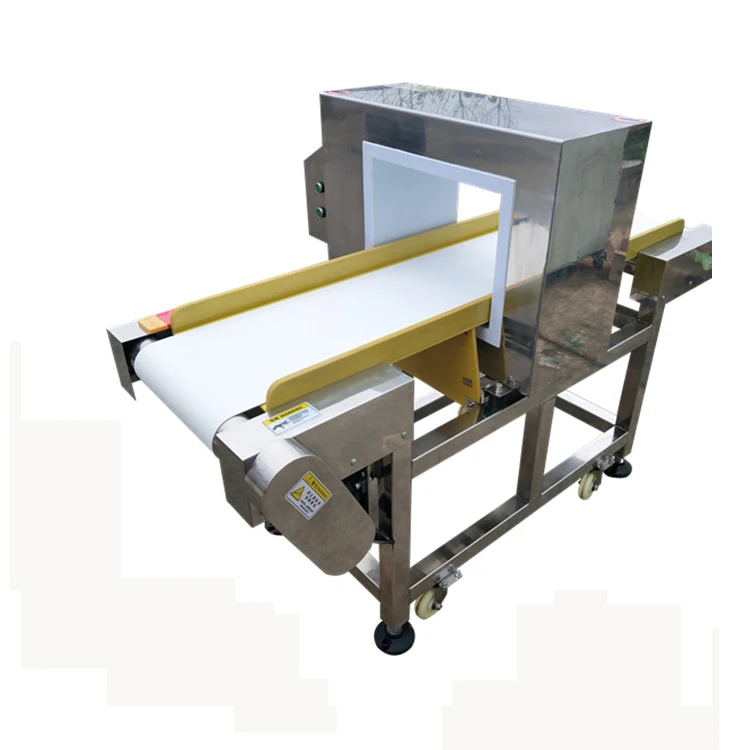

Metal detectors -WB-J4015
Food metal detectors are used to identify and remove metal contaminants in the food processing industry. A metal detector's primary purpose is to protect the consumer from metal particles that can find their way into the food line during production. The careful elimination of these threats protects brand integrity and is vital for manufacturers to comply with regulations.

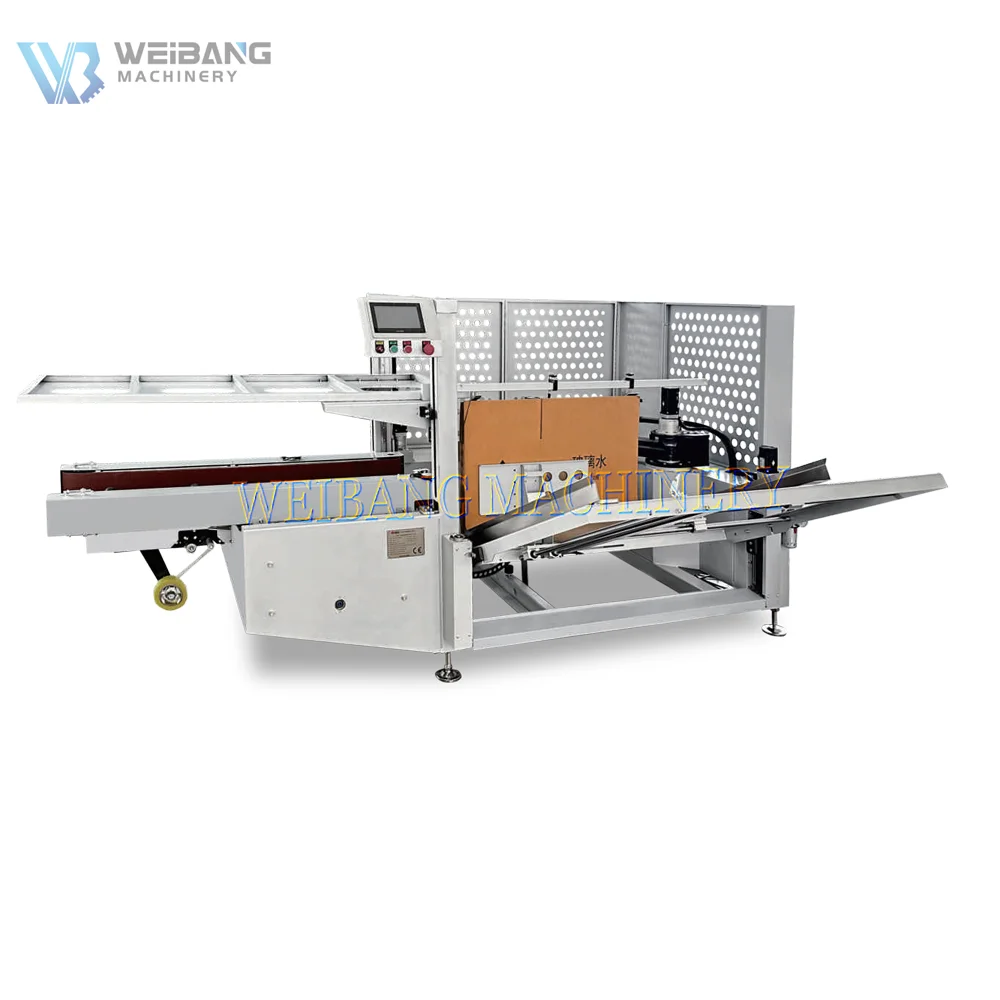

2 Servo Control Case Erector Machine - WB-DK500
Application: This machine is mainly used for opening various types of cardboard boxes automatically.Performance characteristics:
1. Workflow: mechanical arm picking up the box→opening the box→folding the bottom→sealing the bottom→output
2. PLC control, color touch screen display, machine has function of counting automatically.
3. Adopts servo motor to open box, which ensure the box is square.
4. Simple structure, convenient to operate and easy to maintain.
5. Low noise, smooth operation, and does not damage the cardboard box.
6. Adopts design of inclined unpowered box storage, can replace boxes at any time without shutting down machine (optional).
7. It can achieve seamless integration with all back-end devices.
8. Main electrical components adopt foreign well-known brands.
9. Machine framis made of carbon steel/spray plastic material.
2. PLC control, color touch screen display, machine has function of counting automatically.
3. Adopts servo motor to open box, which ensure the box is square.
4. Simple structure, convenient to operate and easy to maintain.
5. Low noise, smooth operation, and does not damage the cardboard box.
6. Adopts design of inclined unpowered box storage, can replace boxes at any time without shutting down machine (optional).
7. It can achieve seamless integration with all back-end devices.
8. Main electrical components adopt foreign well-known brands.

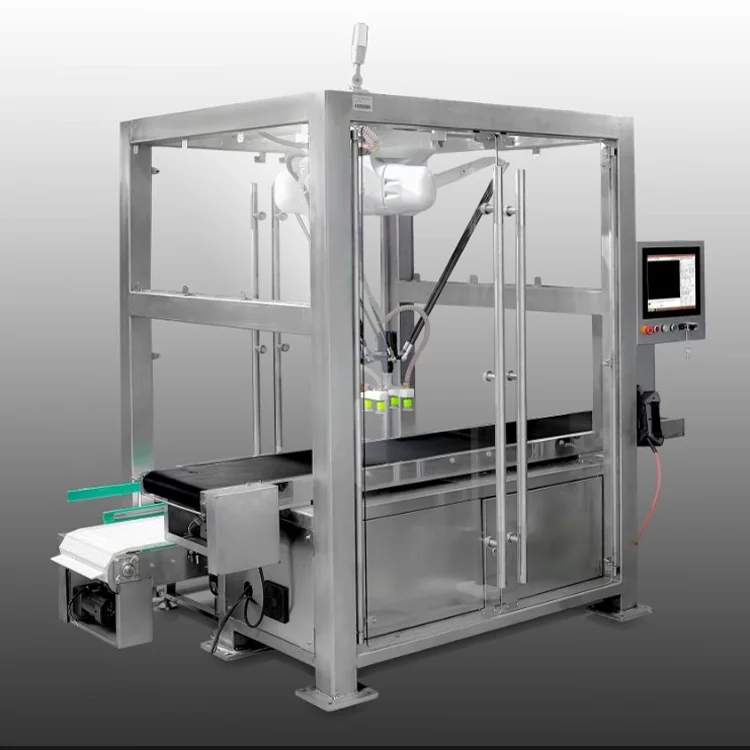

9. Machine framis made of carbon steel/spray plastic material. Automatic Intelligent Robotic Spider Arm Case Packer
This machine is suitable for fully automatic box packaging of various soft and hard bagged/bottled products in industries such as beverages, food, cosmetics, chemicals.
Performance feature:
1. PLC control, color touch screen display, machine has function of counting automatically.
2. Grabbing/coordinate/parallel spider hand box packing machine can be customized.
3. With formula storage function, no need to reset program when replace product.
4. When there are changes in the stacking specifications and box specifications, can adjust conveniently and accurately.
5. The packaging is smooth and does not damage the appearance of the box. The finished cardboard box has a clean and intact appearance.
6. Especially suitable for assembly lines, it is easy to move and has stable movements.
7. This machine can be made into electric packing machines, pneumatic packing machine servo packing machines according to the driving method.
8. Main electrical components adopt foreign well-known brands.
9. Machine frames made of carbon steel/spray plastic material.

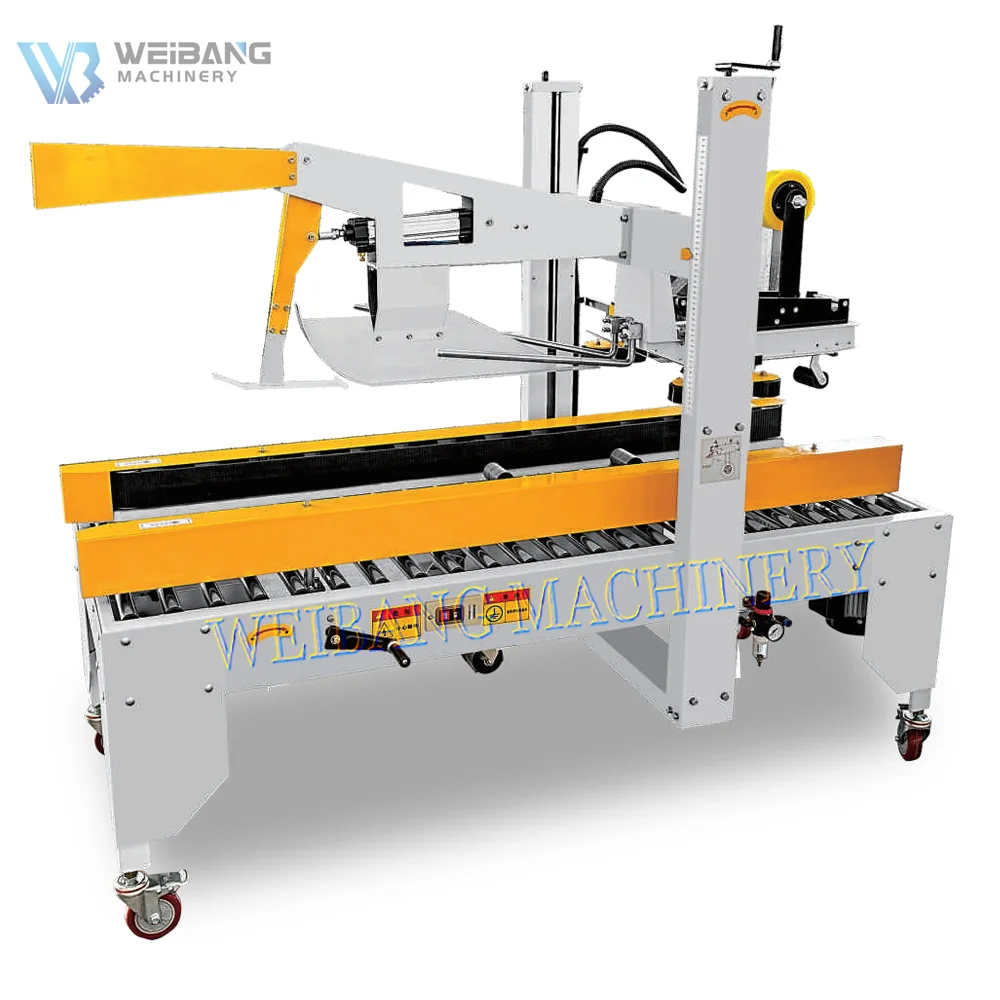

WB-FZ5050 Automatic Fold carton and seal bottom
This machine is widely used in industries such as food, beverage, medicine, cosmetics, daily chemicals, automobiles, cables, electronics, etc.
Performance feature:
1. Workflow: conveying box→folding top of box→top sealing (optional bottom sealing synchronously)→output
2. Machine can be used for sealing cartons with different specifications.
3. Pneumatic sealing, fast and beautiful.
4. Easy to operate, economical and durable, with low failure rate.
5. It can be connected with carton erector, packing machine, palletizer, and other machines.
6. Machine frame is made of carbon steel/spray plastic material.

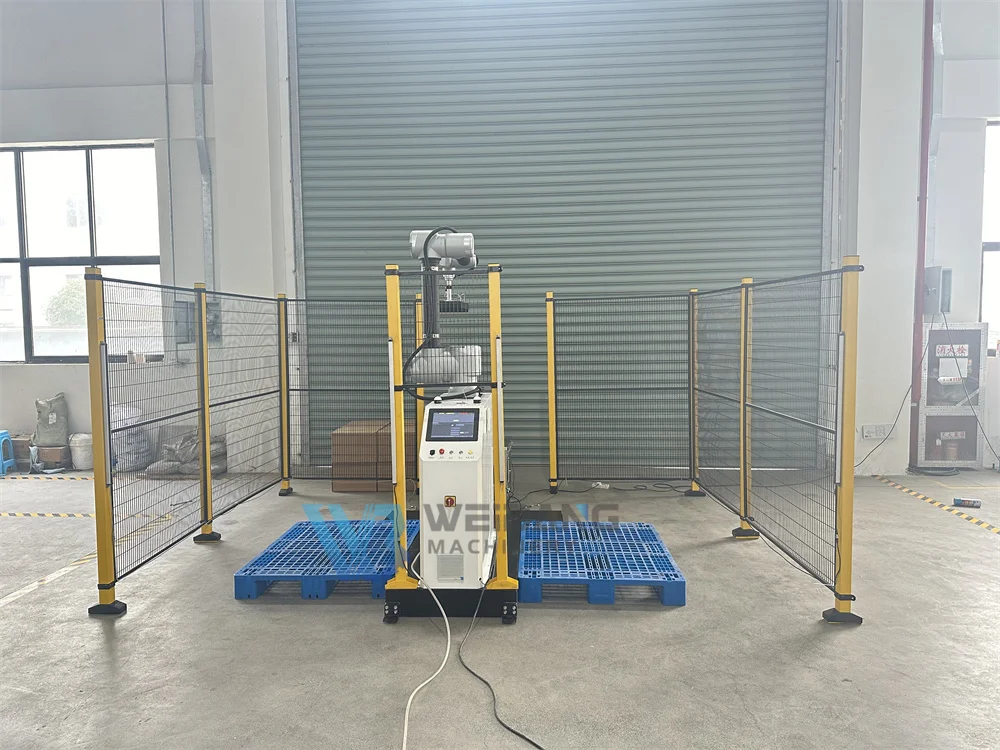

WB-MD35R Automatic Robotic Palletizer machine
Application: This machine is widely used for stacking products in industries such as food, cosmetic ,3C, daily chemical, and printing.
Performance feature:
1. Safety and stability: industrial grade force control sensors with high reliability and safety; support level 10 collision detection and sensor safety detection; safety functions will not be lost when occurs a single fault.
2. Flexible deployment: integrated design, lightweight and flexible, with a small foot print; the deployment of new tasks on workstations is simple, fast, and effective.
3. Easy programming: graphical programming, simple and efficient, no need to master programming languages to easily use robots (programming methods can be mastered in half an hour, simple editing can be completed in one hour).
4. Flexible production: multiple functional scenarios can be switched quickly, and flexible production can be achieved through human-machine collaboration, dual machine collaboration, and multi machine collaboration.
5. Optional: LiDAR(Lidar) sensor (contactless, set the detection distance flexibly, alarm and slow down near the yellow area, stop immediately upon when entering the red area; grating sensor (stable performance, strong anti-interference ability, high induction sensitivity, fast response, long service life); security fence (physical protection, safe and reliable); conveyor line.

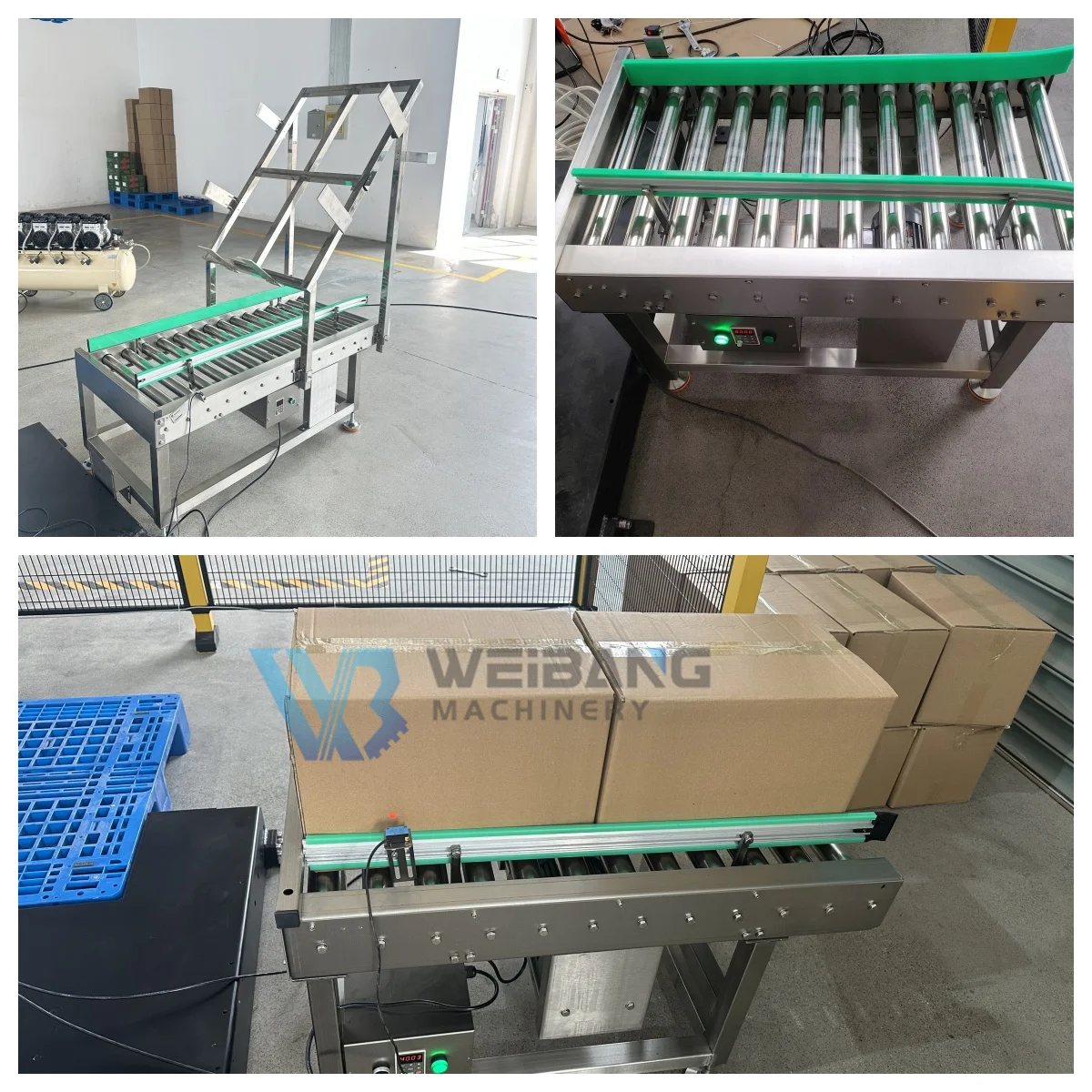

6. Machine frame is made of carbon steel/spray plastic material.Customrize Roller Conveyor ,Length Can make as 1 meter ,1.5meter /2 meters according to your facility requirements
Why Choose Weibang’s Packaging Automation?
Labor Reduction: Drastically reduce human intervention and operational costs.
Scalable Design: Whether you are in the food, pharmaceutical, or chemical industry, our system adjusts to various carton sizes and product formats.
Smart Control: Centralized PLC interface (Siemens/Delta) for seamless synchronization of the entire line.
Durability: Built with industrial-grade stainless steel to withstand 24/7 high-intensity production environments.
