Shrink Sleeve Labeling Machine
VR
  • Product Details

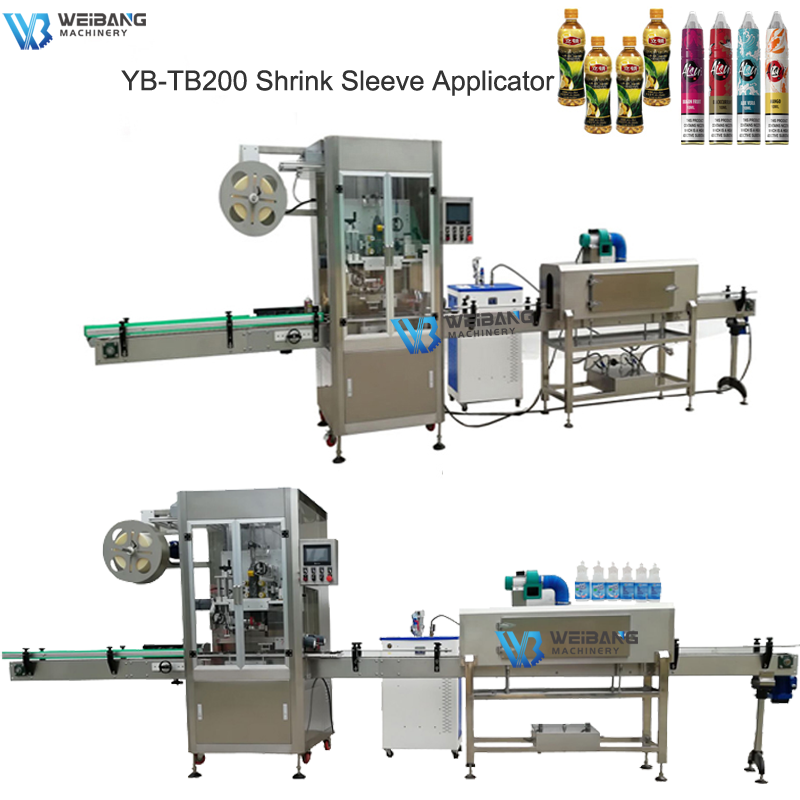

This steam shrink tunnel consists of 1 fully automatic shrink sleeve label applicator, 1 shrink sleeve steam tunnel and 1 steam generator.



Detailed introduction:


Performance features:

1. The whole line can be controlled manually or automatically

Automatic speed regulation: under the automatic state, the machine can automatically adjust the speed of the machine according to the production speed of the front track, cooperate with the battery eye and automatic tracking system, so as to fully achieve the function of unmanned automation.



Manual speed regulation: the conveying speed can be controlled according to the output requirements, and the operation is completely humanized.

2. Automatic fault detection of the whole machine, with Chinese and English display of human-computer interface and alarm prompt of three-color light, can find out the cause of equipment failure in time.

3. Single positioning central guide post: label guiding is more stable.

4. Adjustable cutter head: original rotary cutting, double blade, long life.

5. Smooth section without fish tail makes the contraction more perfect.

6. Applicable bottle types: round bottle, square bottle, flat bottle, curved bottle, cup type and other irregular bottle types.

7. The main electrical components of the machine are of foreign famous brands.


Technical parameters:


型号/Model

YB-TB200

生产能力/Capacity

100-200 bottles/min

标签长度/Label length

40-300mm

标签厚度/Label thickness

0.03-0.13mm

纸管内径/Paper corn inner diameter

76mm

电源/Power supply

1Ph. 220V, 50/60Hz

功率/Power

1.8 KW

净重/Net weight

350kg

外形尺寸/Overall dimension

 L2100 × W850 × H2100mm



刀盘规格/Cutter disk specification:

  刀盘内孔直径/Cutter disk inner bore diameter (mm)

    适用瓶子直径/Applicable bottle diameter (mm)

138

120-134

124

106-120

110

86-106

90

56-86

60

25-56



What is shrink sleeve labeling machine?


Commonly used for food, beverage, or personal care items, shrink sleeve machines work by applying heat to shrink sleeve labels. The heat causes it to tightly conform to the body of the product's packaging, creating an eye-catching label that can easily be recycled.


What material are shrink sleeves made of?


The primary material used in shrink sleeve labeling today is Polyethylene Terephthalate Glycol (PETG). Key benefits of PETG use include its widespread availability, overall film clarity, stability compared to other material options and shrink capability of up to 78 percent.



Advantages:


Motor to up and down which enable the operation more convenient.

It is easy to change the central clamping device without any tools.

Oriental rolling label device can be lifting synchronal.

The separating bottle screw, oriental belt and conveyor are adjusted synchronal.
